OMRON  NA5-7W001B-V1 NA5-7W001S-V1 NA5-9W001B-V1 NA5-12W101B-V1 touch screen

OMRON  NA5-7W001B-V1 NA5-7W001S-V1 NA5-9W001B-V1 NA5-12W101B-V1 touch screen

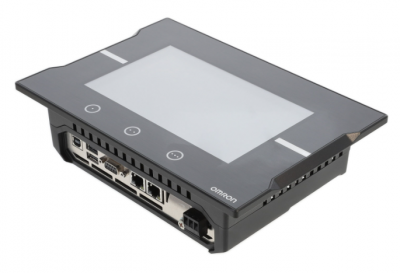

Touch screen HMI, 7 inch wide screen, TFT LCD, 24bit color, 800×480 resolution, frame color : Black

Specifications

Interaction    Touch screen

Display    Color graphics

HMI type    Dedicated Advanced HMI

Display size and type    7 inch TFT Color LCD

Resolution    800 x 480

Memory size    900 MB

Bezel color    Black​
