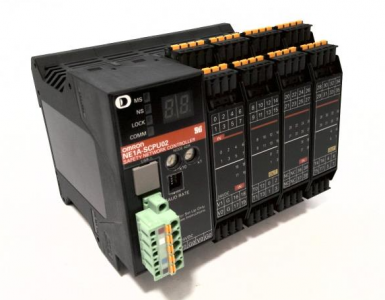

Omron NE1A-SCPU02 Network Controller

Omron NE1A-SCPU02 Network Controller

Specifications

Product Life Cycle    Discontinuation Announced

Number of I/O    40 Safety Inputs & 8 Safety Outputs

Power Supply    24 VDC​

The indication accuracy of K thermocouples in the −200 to 1.300°C range, T and N thermocouples at a temperature of −100°C max., and U

and L thermocouples at any temperature is ±2°C ±1 digit max. The indication accuracy of B thermocouples at a temperature of 400°C max. is

not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800°C is ±3°C max.

The indication accuracy of R and S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W

thermocouples is (±0.3% of PV or ±3°C, whichever is greater) ±1 digit max.

The indication accuracy of PLII thermocouples is (±0.3% of PV or ±2°C, whichever is greater) ±1 digit max.

*2.However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max.

*3.Ambient temperature: −10°C to 23°C to 55°C, Voltage range: −15% to 10% of rated voltage

*4.K thermocouple at −100°C max.: ±10°C max.

*5.The unit is determined by the setting of the Integral/Derivative Time Unit parameter.

*6.External serial communications (RS-485) and USB-Serial Conversion Cable communications can be used at the same time.

*7.Refer to your OMRON website for the most recent information on applicable models.

*8.Refer to information on maritime standards in Shipping Standards on page124 for compliance with Lloyd’s Standards.

*9.Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Main unit: Approx. 80 g, Models with Screw Terminal Unit: Approx. 40 g,

Models with Push-In Plus Terminal Unit: Approx. 40 g

Degree of protection Main unit: IP20. Terminal unit: IP00

Memory protection Non-volatile memory (number of writes: 1.000.000 times)

Setup Tool CX-Thermo version 4.6 or higher

Setup Tool port

E5DC/E5DC-B bottom panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect a USB port

on the computer. *6

E5DC/E5DC-B front panel: An E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E Conversion

Cable are used together to connect a USB port on the computer.*6

Standards Approved standards cULus: UL 61010-1/CSA C22.2 No.61010-1. Korean wireless regulations (Radio law: KC Mark) (Some

models only.) *7. Lloyd’s standards (E5DC only) *8. EAC

Conformed standards EN 61010-1 (IEC 61010-1), RCM

EMC

NE1A-SCPU02

EMI: EN61326-1 *9

Radiated Interference Electromagnetic Field Strength: EN55011  Group 1. class A

Noise Terminal Voltage: EN55011  Group 1. class A

EMS: EN61326-1 *9

ESD Immunity: EN61000-4-2

Electromagnetic Field Immunity: EN61000-4-3

Burst Noise Immunity: EN61000-4-4

Conducted Disturbance Immunity: EN61000-4-6

Surge Immunity: EN61000-4-5

Voltage Dip/Interrupting Immunity: EN61000-4-11
