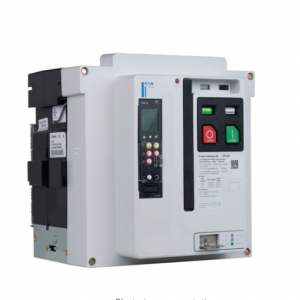

Eaton SPSC124WEAXX2A Power Defense SB
SPSC124WEAXX2A
Eaton Power Defense SB, Standard, 1200 A, 100 kA, 4-Pole, Drawout, PXR20LSI, C124WEAXX2A
Eaton SPSC124WEAXX2A
Eaton Power Defense SB, Standard, 1200 A, 100
kA, 4-Pole, Drawout, PXR20LSI,
C124WEAXX2A
General specifications
PRODUCT NAME Eaton Magnum low voltage
power circuit breaker
CATALOG NUMBER SPSC124WEAXX2A
UPC 786689763091
PRODUCT
LENGTH/DEPTH 14.6 in
PRODUCT HEIGHT 16.8 in
PRODUCT WIDTH 21.2 in
PRODUCT WEIGHT 160 lb
Delivery program
AMPERAGE RATING
1200 A
APPLICATION
UL 891
SPSC124WEAXX2A
FRAME
Standard
NUMBER OF POLES
Four-pole
TYPE
Power Defense SB
Physical details
MOUNTING METHOD
Drawout
NUMBER OF POLES
Four-pole
Technical data – Mechanical
MOUNTING METHOD
Drawout
INTERRUPT RATING
100 kA
General information
APPLICATION
UL 891
FRAME
Standard
SERIES
Magnum
TRIP TYPE
PXR20
Technical data – Electrical
1200 A
RATED UNINTERRUPTED
CURRENT (IU)
VOLTAGE RATING
600 VAC
Technical information
INTERRUPT RATING
100 kA
AMPERAGE RATING
1200 A
RATED UNINTERRUPTED
CURRENT (IU)
1200 A
VOLTAGE RATING
600 VAC
