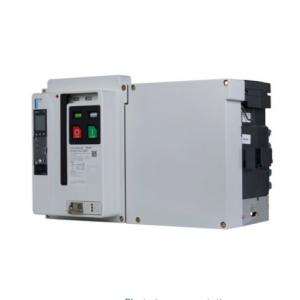

Eaton SPN8403YEAXX2H Power Defense SB
SPN8403YEAXX2H
Eaton Power Defense SB, Double Narrow, 4000 A, 85 kA,
3-Pole, Drawout w/ MR2. PXR20LSIAM, 8403YEAXX2H
Eaton SPN8403YEAXX2H
Eaton Power Defense SB, Double Narrow, 4000 A,
85 kA, 3-Pole, Drawout w/ MR2. PXR20LSIAM,
8403YEAXX2H
General specifications
PRODUCT NAME Eaton Magnum low voltage
power circuit breaker
CATALOG NUMBER SPN8403YEAXX2H
UPC 786689744861
PRODUCT
LENGTH/DEPTH 16.3 in
PRODUCT HEIGHT 16.8 in
PRODUCT WIDTH 24.9 in
PRODUCT WEIGHT 177 lb
Delivery program
AMPERAGE RATING
4000 A
APPLICATION
UL 891
FRAME
Double narrow
NUMBER OF POLES
Three-pole
SPN8403YEAXX2H
TYPE
Power Defense SB
Physical details
MOUNTING METHOD
Drawout
NUMBER OF POLES
Three-pole
Technical data – Mechanical
MOUNTING METHOD
Drawout
INTERRUPT RATING
85 kA
General information
ACCESSORIES
MR2
APPLICATION
UL 891
FRAME
Double narrow
SERIES
Magnum
TRIP TYPE
PXR20
Technical data – Electrical
4000 A
RATED UNINTERRUPTED
CURRENT (IU)
VOLTAGE RATING
600 VAC
Technical information
INTERRUPT RATING
85 kA
AMPERAGE RATING
4000 A
RATED UNINTERRUPTED
CURRENT (IU)
4000 A
VOLTAGE RATING
600 VAC
