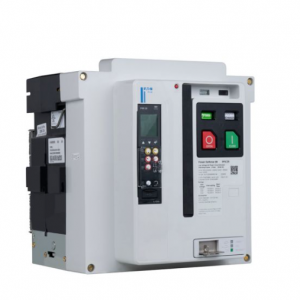

Eaton SPS6304WEAXX2F Power Defense SB
SPS6304WEAXX2F
Eaton Power Defense SB, Standard, 3000 A, 65 kA, 4-Pole, Drawout, PXR20LSIGAM, 6304WEAXX2F
Eaton SPS6304WEAXX2F
Eaton Power Defense SB, Standard, 3000 A, 65
kA, 4-Pole, Drawout, PXR20LSIGAM,
6304WEAXX2F
General specifications
PRODUCT NAME Eaton Magnum low voltage
power circuit breaker
CATALOG NUMBER SPS6304WEAXX2F
UPC 786689758400
PRODUCT
LENGTH/DEPTH 14.6 in
PRODUCT HEIGHT 16.8 in
PRODUCT WIDTH 21.2 in
PRODUCT WEIGHT 160 lb
PRODUCT TYPE Low voltage power circuit
Delivery program
AMPERAGE RATING
3000A
SPS6304WEAXX2F
APPLICATION
UL 891
FRAME
Standard
NUMBER OF POLES
Four-pole
TYPE
Power Defense SB
Physical details
MOUNTING METHOD
Drawout
NUMBER OF POLES
Four-pole
Technical data – Mechanical
MOUNTING METHOD
Drawout
INTERRUPT RATING
65 kA
General information
APPLICATION
UL 891
FRAME
Standard
SERIES
Magnum
TRIP TYPE
PXR20
Technical data – Electrical
3000 A
RATED UNINTERRUPTED
CURRENT (IU)
VOLTAGE RATING
600 VAC
Technical information
INTERRUPT RATING
65 kA
AMPERAGE RATING
3000A
RATED UNINTERRUPTED
CURRENT (IU)
3000 A
VOLTAGE RATING
600 VAC
