CTI 2500C-8-IDO-120V 8 Isolated 120VAC Outputs
2500C-8-IDO-120V 8 Isolated 120VAC Outputs

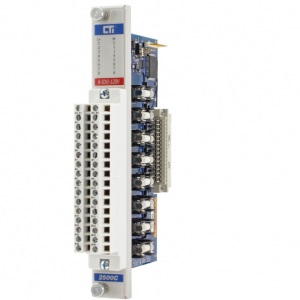

The 2500C-8-IDO-120V module outputs a wide range of AC voltage signals. It is designed to provide 8 solid state output circuits to switch on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 120VAC. Front panel LEDs provide visual indication for output and fuse status.
Features
Single wide module
8 channels isolated channel-to-channel
Output voltages 79-132VAC
Output current 1A max
Each channel is individually fused
Channel On/Off Status Indication
Blown fuse indication and reporting for each channel
Uses 2500C-32F Connector
Blown Fuse Operation Overview..
Blown Fuse detection works when the Output Channel
is wired and the output is turned on. If the fuse is blown
the LED will turn ON and the associated X address will
equal 1. If the Output Channel is turned off the LED
indicator will turn OFF and the associated Blown Fuse
Bit will equal 0 . The module does not Latch the Blown
Fuse Input so the user application should trap for the
reported Blown Fuse Bit while the Output is turned ON.
This will allow logging and notification of the blown
fuse event to your HMI stations and other reporting
devices. Blown Fuse reporting on this module is for
each channel.
Outputs per module 8
Module Logon 8X /8Y
Output Voltage Range 79-132 VAC
Maximum Output current per
channel
1 A @ 45ºC
.625A @ 60ºC
Maximum Surge Current 3A for 15 sec
Total Module Current 8 A @ 45ºC
5A @ 60ºC
“ON” State Voltage Drop NA
“OFF” State Leakage Current 750µA @ 120VAC
Turn ON Time 1/2 AC cycle
Turn OFF Time 1/2 AC cycle
Fusing 8 fuses
Fuses:
8 Field Replaceable Fuses
2.0 amp, 250V
Type Schurter 0034.0904
Module Size Single wide module
Connector 2500C-32F
Backplane Power (MAX) 1.09 watts
Input ESD Protection IEC 1000-4-2 Level 4
Isolation 1500 VDC Channel to Backplane
300 VAC Channel to Channel
Shipping Dimensions and
Weight
223.84mm x 109.86mm x 34.93mm,
0.234kg
Operating Temperature Range 0ºC to 60ºC (32ºF to 140ºF)
Storage Temperature Range -40ºC to 85ºC (-40ºF to 185ºF)
Relative Humidity 5% to 95% (non-condensing)
2500C-8-IDO-120V
