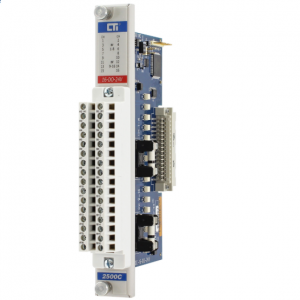

CTI 2500C-16-DO-24V Sixteen 24VDC Digital Outputs
2500C-16-DO-24V Sixteen 24VDC Digital Outputs
The 2500C-16-DO-24V module outputs a wide range of DC voltage signals. It is designed to provide 16 solid state output circuits to switch on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 24VDC. Front panel LEDs provide visual indication for output and fuse status.
Features
Single wide module
16 channels isolated in 2 groups of 8
Output voltage 11-30 VDC
Output current 0.5A max
Each group of 8 channels are fused
Sourcing Outputs
Channel On/Off Status Indication
Blown fuse indication and reporting for each group
Uses 2500C-32F Connector
Outputs per module 16
Module Logon 8X /16Y
Output Voltage Range 11 to 30 VDC
Module Logon Classic Plus
Mode selected with JP2. 8X /16Y
Module Logon Classic Mode
selected with JP2. 16Y
Maximum Output current per
Channel – Preliminary
.5 A @ 25ºC
.25 @ 60ºC
Maximum Output current per
Group 4A at 25ºC
Maximum Surge Current 3A for 15 sec
“ON” State Voltage Drop 83 mV
“OFF” State Leakage Current 0.05 µA
Turn ON Time .5 mS
Turn OFF Time 10 mS
Fusing Groups of 8
2500C-16-DO-24V
Fuses:
2 Field Replaceable Fuses
6.3 amp, 250V
Type Littlefuse #23016300021
Schurter 0034.0909
Module Size Single wide module
Connector 2500C-32F
Backplane Power (MAX) 1.25 watts
Input ESD Protection IEC 1000-4-2 Level 4
Isolation 1500 VDC Channel to Backplane
1000 VDC Group to Group
Shipping Dimensions and
Weight
223.84mm x 109.86mm x 34.93mm,
0.234kg
Operating Temperature Range 0ºC to 60ºC (32ºF to 140ºF)
Storage Temperature Range -40ºC to 85ºC (-40ºF to 185ºF)
Relative Humidity 5% to 95% (non-condensing)
DESCRIPTION
The 2500C-16-DO-24V Module outputs a wide range of
DC voltage signals. It is designed to provide 16 solid state
output circuits to switch on or off external devices such as
pilot lamps, motor starters or solenoids. The 2500C-16
DO-24V is designed to switch an externally supplied
24VDC. LEDs provide visual indication for output and
fuse status.
