ADLINK Peripherals & Accessories cPCI-8301
Peripherals & Accessories

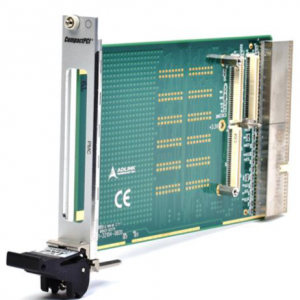

cPCI-8301
3U CompactPCI® Single 64-bit PMC Slot Carrier Board
Key Features
PICMG® 2.0 32.64-bit/33.66 MHz cPCI bus
Supports one single-size 32.64-bit/33.66 MHz PMC site in 4HP width
Universal V(I/O) decided by backplane
Comprehensive EMC shielding
Ordering Information
cPCI-83013U cPCI single PMC slot carrier board
cPCI-8301/6U6U cPCI single PMC slot carrier board
cPCI-3E10/3E12
3U CompactPCI® 2/4-Port Gigabit Ethernet Card
PICMG
® 2.0 R3.0 compliant
Supports 32bit/33MHz, 66bit/64MHz CompactPCI
3U 4HP form factor, 100mmx160mm (LxW)
® bus
Two or four RJ-45 10/100/1000BASE-T ports on front panel
Intel
® 82574L Gigabit Ethernet controllers
Two LAN ports switchable to rear (cPCI-3E10 only)
OS support: Windows
® XP/Vista/7/
Server 2003/Server 2008. RHEL 5.1
Ordering Information
cPCI-3E10: 3U cPCI four port RJ-45 LAN card,
two ports switchable to rear
cPCI-3E12: 3U cPCI two port RJ-45 LAN card
cPCI-R3E10: RTM for cPCI-3E10 with two RJ-45 LAN
ports in 50mm depth
cPCI-R3E10T: RTM for cPCI-3E10 with two RJ-45 LAN
ports in 80mm depth
cPCI-8301
3U CompactPCI® Single 64-bit PMC Slot Carrier Board
PICMG
cPCI-8301
® 2.0 32.64-bit/33.66 MHz cPCI bus
Supports one single-size 32.64-bit/33.66 MHz PMC site in
4HP width
Universal V(I/O) decided by backplane
Comprehensive EMC shielding
Ordering Information
cPCI-8301: 3U cPCI single PMC slot carrier board
cPCI-8301/6U: 6U cPCI single PMC slot carrier board
cPCI-8602
6U CompactPCI® Dual 64-bit PMC Slot Carrier Board
PICMG
® 2.0 32.64-bit/33.66 MHz cPCI bus
PICMG
® 2.1 Hot Swap Specification Compliant
Supports two single-size 32.64-bit/33.66 MHz
PMC sites in 4HP width
3.3V or 5V V(I/O) for cPCI bus and PMC sites
PLX
® PCI-to PCI bridge PCI6154 for PCI bus
Power and HotSwap LED incidators on front
panel
Ordering Information
cPCI-8602: 6U cPCI dual PMC slot carrier board
cPCI-7841
Dual-port Isolated CAN Interface Card
PICMG
® 2.0 Rev 2.1
Dual-independent CAN network operation
Up to 1 Mbps programmable transfer rate
16 MHz CAN controller frequency
2500 V
RMS
optical isolation
Direct memory mapping to the CAN controllers
Powerful master interface for CAN bus
protocols
Rear I/O available on cPCI-7841R
Ordering Information
cPCI-7841: Dual-port isolated CAN interface card in
3U CompactPCI form factor
cPCI-7841R: Dual-port isolated CAN interface card in
3U CompactPCI form factor with rear I/O
support
cPCI-3544
4-Port RS-422/485 Isolated Serial Communications Card
32-bit CompactPCI
®, PICMG® 2.0 Rev 2.1
Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
Four asynchronized communications ports with intelligent buffer
Four RS-422/485 ports
2500 V
RMS
isolation voltage
Supports multiple OS
Surge protectors
Rugged DB37 connector
Only supports CompactPCI interface 5 V (I/O)
Ordering Information
cPCI-3544: Isolated 4-port RS-422/RS-485 serial
communications module
cPCI-3544R: Isolated 4-port RS-422/RS-485 serial
communications module with rear I/O support
cPCI-8273
3U CompactPCI® 3-port IEEE-1394 Card
3 IEEE1394a ports on front panel
PICMG
® 2.0 32-bit/33 MHz CompactPCI® specification
VIA VT6306 IEEE-1394a controller
Provides three ports, up to 400 Mbps
Supports OHCI compliant programming interface
Ordering Information
cPCI-8273: 3U cPCI 3-port IEEE 1394 card
PMC-8246
Dual-Gigabit Ethernet Ports PCI-X/PMC Module with
Failover Function
Dual-Gigabit Ethernet ports
Supports PCI-X bus up to 133 MHz
Failover capability during system power off or software halt
Software programmable failover control
DIP Switch selectable failover control
Programmable watchdog timer,
WDT status read-back
Intel
® – PMC Module Boot Agent BIOS
