ADLINK Peripherals & Accessories cPCI-3W10
Peripherals & Accessories
cPCI-3W10

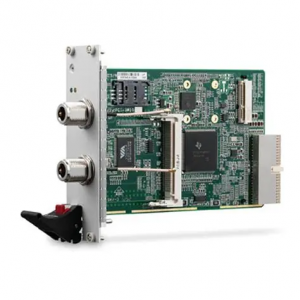

3U CompactPCI Mini PCI, Mini PCIe Carrier Board
Key Features
Supports 32bit, 33/66MHz CompactPCI® bus
One SIM card socket
One Mini PCI and one Mini PCIe socket
PICMG® 2.0 R3.0 compliant
cPCI-3E10/3E12 cPCI-3544
cPCI-8301
cPCI-3W10
Dual-Gigabit Ethernet ports
Supports PCI-X bus up to 133 MHz
Failover capability during system power off or software halt
Software programmable failover control
DIP Switch selectable failover control
Programmable watchdog timer,
WDT status read-back
Intel® – PMC Module Boot Agent BIOS
PICMG® 2.0 R3.0 compliant
Supports 32bit/33MHz, 64bit/66MHz CompactPCI® bus
3U 4HP form factor, 100mmx160mm (LxW)
Two or four RJ-45 10/100/1000BASE-T ports on front panel
Intel® 82574L Gigabit Ethernet controllers
Two LAN ports switchable to rear (cPCI-3E10 only)
OS support: Windows® XP/Vista/7/
Server 2003/Server 2008. RHEL 5.1
PICMG® 2.0 32.64-bit/33.66 MHz cPCI bus
Supports one single-size 32.64-bit/33.66 MHz PMC site in
4HP width
cPCI-3W10
Universal V(I/O) decided by backplane
Comprehensive EMC shielding
PICMG® 2.0 R3.0 compliant
Supports 32bit, 33/66MHz CompactPCI® bus
One Mini PCI and one Mini PCIe socket
One SIM card socket
PICMG® 2.0 32.64-bit/33.66 MHz cPCI bus
PICMG® 2.1 Hot Swap Specification Compliant
Supports two single-size 32.64-bit/33.66 MHz
PMC sites in 4HP width
3.3V or 5V V(I/O) for cPCI bus and PMC sites
PLX® PCI-to-PCI bridge PCI6154 for PCI bus
Power and HotSwap LED incidators on front
panel
● cPCI-3E10: 3U cPCI four port RJ-45 LAN card,
two ports switchable to rear
● cPCI-3E12: 3U cPCI two port RJ-45 LAN card
● cPCI-R3E10: RTM for cPCI-3E10 with two RJ-45 LAN
ports in 50mm depth
● cPCI-R3E10T: RTM for cPCI-3E10 with two RJ-45 LAN
ports in 80mm depth
