ADLINK PICMG Single Board Computers NuPRO-E72

PICMG Single Board Computers

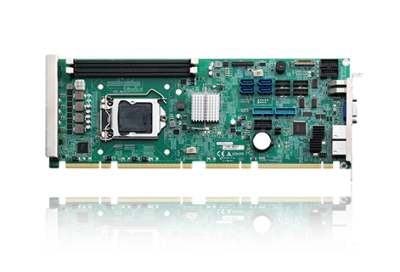

NuPRO-E72

PICMG 1.3 SHB with 4th Generation Intel® Xeon E3-1200 v3 Processor

Key Features

PICMG 1.3 form factor

Workstation grade computing power from 4th Gen Intel® Xeon E3-1200 v3 Processor, and Intel® C226 chipset with ECC support

Multiple native PCIe Gen3 expansion from 1x PCIe x8. 2x PCIe x4 with Gen3 speed

A variety of expansion slots mean flexible function enhancement and easier system integration, better empowering industrial automation applications.

6 COM ports (5x RS-232. 1x RS-232/422/485 with auto flow control)

6x USB 3.0 ports, 4x USB 2.0 ports, 4 SATA 6Gb/s supported RAID 0. 1. 5. 1+0 by Intel Rapid Storage Technology

Full compatibility with ADLINK’ s best selling motion/vision cards such as PCIe-HDV62A, PCIe-GIE64+, PCIe-RTV24 makes the system ideal for vision Inspection applications

the 4th Gen Intel Xeon E3-1200 v3 processor and IntelR C226 chipset with ECC support. Combined high-bandwidth PCIe x16 (can be configured to 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4), PCIe x4 and conventional PCI slots ensure compatibility with high-speed frame grabbers and motion controllers,

NuPRO-E72

making it an optimum solution for machine vision and automation applications.

The NuPRO-E72 also delivers superior connectivity with 6 COM ports (5 RS232 and 1 RS232/RS422/485 with RS-485 auto-flow control) and 10x USB ports (6 USB 3.0). With an optional WBP-13E4 backplane,

the NuPRO-E72 is the best solution available for automation applications requiring multiple native PCIe gen 3 in 4U rackmounts, maximizing the flexibility and configuration of PCI/PCI Express systems.
