ADLINK PICMG Single Board Computers NuPRO-865
PICMG Single Board Computers

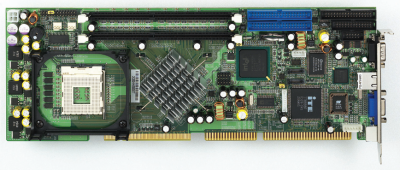

NuPRO-865
PICMG® 1.0 Full-Size Socket 478 Intel® Pentium® 4 SBC with DDR, GbE and Serial ATA
Key Features
PICMG® 1.0 Full-Size SBC
High computing capability, supports 800 MHz FSB Socket 478 Intel® Pentium® 4 processor with Intel® Hyper-Threading technology
Intel® 865G + ICH5 chipset with DDR 400/333 MHz
10/100/1000Base-T Gigabit Ethernet
Supports Serial ATA (1.5 Gbps) for high-speed storage devices
NuPRO-865
NuPRO-865
PICMG® 1.0 Full-Size Socket 478 Intel® Pentium® 4 SBC with DDR, GbE and Serial ATA
Features
PICMG® 1.0 Full-Size SBC
High computing capability, supports 800 MHz FSB Socket 478 Intel® Pentium®
4 processor with Intel® Hyper-Threading technology
Intel® 865G + ICH5 chipset with DDR 400/333 MHz
10/100/1000Base-T Gigabit Ethernet
Supports Serial ATA (1.5 Gbps) for high-speed storage devices
Specifications
System
System
CPU
FSB
Chipset
RAM
BIOS
Watchdog Timer
Hardware Monitor
I/O Interfaces
I/O Interfaces
Socket 478 Intel® Pentium® 4 processor
Supports Hyper-Threading Technology
800/533 MHz
Intel® 865G + ICH5
DDR 400/333 MHz, up to 2 GB
Award 4 Mb flash memory
1-255 sec or 1-255 min software programmable and can generate
system reset
CPU/System temperature, fan speed and onboard DC voltages
IDE
Serial ATA
USB
Multi I/O
Display
Display
VGA
Two-channel ultraATA 66/100
Two Serial ATA ports with 1.5Gbps data transfer rate
Four USB 2.0 ports by onboard pin header
Two RS-232. one LPT, one Floppy, one IrDA,and one x PS/2
keyboard/mouse
Intel® 865G integrated VGA (Intel® Extreme Graphics 2)
NuPRO-865
Ethernet
Ethernet
Gigabit LAN
Onboard Intel® 82547 GbE controller supports 10/100/1000Base-T
Gigabit Ethernet
Mechanical and Environmental
Mechanical and Environmental
Form Factor
Dimensions
Operating Temp.
Storage Temp.
Compliance
Standard Full-Size PICMG® CPU board
PICMG® 1.0
338 mm x 122 mm (L x W)
0˚C to 55˚C-20˚C to 80˚C
CE, FCC Class A
