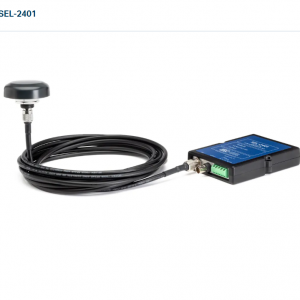

SEL SEL-2401 Satellite-Synchronized Clock

SEL-2401

Satellite-Synchronized Clock

Compact, precision-time device for limited space and high-accuracy timing to ±100 nanoseconds.

Precise Time for Recloser Control

Install in harsh environments, including outdoor recloser control enclosures or other locations requiring a small size and tough construction. The SEL-2401 Satellite-Synchronized Clock provides accurate operation from –40° to +80°C (–40° to +176°F) and is compliant with IEEE C37.90 and IEC 60255.

Accurate Time Synchronization

Synchronize field installations by using a GPS time source and a demodulated IRIG-B output. The SEL-2401 provides ±100 ns timing accuracy for IEEE C37.118 control function extensions for synchrophasors as well as event correlation and reporting.

Timing for Small Substations

Install with relays and digital fault recorders inside small substations. Synchronize up to 20 devices from one IRIG-B output. The SEL-2401 is FCC Part 15. Class A emissions-certified for industrial sites.

Accurate Time Synchronization

Provide timing signals to phasor measurement units (PMUs) as part of a synchronized phasor measurement and control (synchrophasor) system.

IRIG-B000 Extended Time Code:

IEEE 1344 extensions of year, leap second, daylight-saving time, UTC offset, and parity bitHigh Accuracy:

± 100 nsSubstation Hardened:

–40° to +80°CFast Troubleshooting:

Align multiple event reports to an exact time
