ADLINK USB-7230/7250 Isolated USB Digital I/O Modules

ADLINK USB-7230(G)-0010

USB DAQ

USB-7230/7250

Isolated USB Digital I/O Modules (OEM version available)

Key Features

USB 2.0. USB bus powered

Programmable digital filter removes unexpected glitches from input channels

Programmable DO/Relay initial status

32-CH isolated digital I/O (USB-7230), 8-CH relay output, 8-CH isolated DI (USB-7250)

2-CH frequency/event counters (USB-7230/7250)

Up to 2500 VRMS isolation voltage

Ready-to-use testing application (U-Test) provided

Supported Operating System: Windows 7/10. Linux

The USB-7230/7250 USB-based digital I/O modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS.

The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters.

The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters.

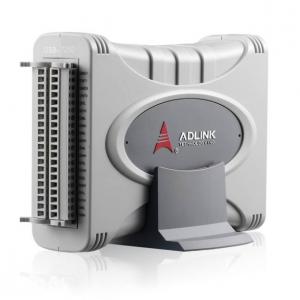

The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.

USB-7230/7250

The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection.

High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops.

U-Test, a free ready-to-use testing program, is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.

OS Information

-Windows 7/10. Linux

Software Compatibility

-LabVIEW

-MATLAB

-C/C++

-Visual Studio.NET

Software Recommendations

-U-Test

Ordering Information

USB-723032-CH isolated Digital I/O & 2-CH counter USB module

USB-7230/OEM32-CH isolated Digital I/O & 2-CH counter USB module, OEM board-level version, no enclosure

USB-7250/OEM8-CH relay output, 8-CH isolated DI & 2-CH counter USB module, OEM board-level version, no enclosure

USB-72508-CH relay output, 8-CH isolated DI & 2-CH counter USB module

Note :Standard shipped accessories include one pair of 20-pin removable screw, 2 M USB Type A to USB Mini-B, Module stand, Rail-mount kit

Accessory

RST-20POne pair of 20-pin removable screw terminals

USB-2M-L2 M USB Type A to USB Mini-B cable with lockable connector
