ADLINK NUPRO-780 PICMG Single Board Computers

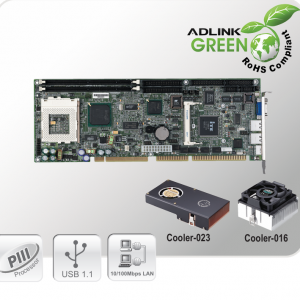

ADLINK NUPRO-780 Industrial Motherboard
PICMG Single Board Computers
NuPRO-780 Series
Full-Size Intel® Pentium® III processor SBC with VGA/Fast Ethernet
Key Features
Uses longevity components supported by Intel Embedded roadmap
Supports all socket 370 based Intel® Pentium® III processor (1.26GHz) and Intel® Celeron® processors
MiniPCI extension capability
High drive ISA bus
ATX power connector for backplane-less applications
Full-Size Intel® Pentium® III Processor SBC with VGA, Fast Etherne
Ordering Information
IDE ATA-100. dual channels
Audio Integrated Audio Controllers with AC’97 interface, with optional DB
AC97S daughter board
USB Supports two USB ports via on-board pin-header connector
Compliant with USB Specification Rev. 1.1
Super I/O Winbond W83627HF, two 16C550 UART compatible RS-232 COM
ports with ESD protection up to 2KV
Printer port supported
ISA High drive ISA capability
MiniPCI Interface One MiniPCI Rev 1.0 compatible Type III slot for function expansion
such as SCSI
Floppy Standard 34-pin connector
Hardware Monitoring Monitors CPU temperatures, FAN speed, system temperature and
Vcore and DC voltages
Watchdog Timer 1-255 sec or 1-255 min software programmable can generate system
resets
NUPRO-780
Form Factor Standard Full-Size PICMG CPU Card
PICMG 1.0
Dimensions 338mm x 122mm (L x W)
Operating Temp. 0 to 55˚C
Storage Temp. -20 to 80˚C
Compliance CE, FCC Class A
Display Intel 815E built-in hyper-pipelined architecture 3D graphics engine,
4MB Video Cache for optimized performance, AGP 4X, ACPI and
VESA compliant
External Power One ATX type connector for backplane-less applications
Connector
Model Number Description/Configuration
DB-AC97S Audio daughter board with Line-in, Line-out, MIC-in connectors
Cooler-016 Cooler for NuPRO-760/780
Cooler-023 Cooler for NuPRO-760/780 for 1U/1GHz CPU
Specifications
CPU Socket 370 based Intel® Pentium® III processor with FC-PGA2
packaging with 512KB on-die L2 cache @ full core speed & 133MHz FSB
Socket 370 based Intel® Pentium® III processor with FC-PGA
packaging with 256KB on-die L2 cache @ full core speed & 100/133MHz FSB
Socket 370 based Intel® Celeron® processor with FC-PGA packaging
with 128KB on-die L2 cache @ full core speed & 66/100MHz FSB
Socket 370 based VIA C3 processor with FC-PGA packaging with
64/128KB L2 cache @ full speed and 100/133MHz FSB
FSB 133MHz
Chipset Intel® 815E Integrated Graphics and Memory Control Hub (MCH), ICH2
RAM Two 168-pin DIMM sockets, Max. 512MB un-buffered PC-133
SDRAM
BIOS Award 4Mb flash memory
