6U CompactPCI 2.0 Blades
cPCI-6626 END OF LIFE

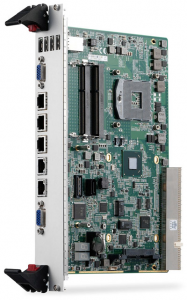

6U CompactPCI Blade with Intel® Core™ i7/i3 Processor
Key Features
Up to 16GB DDR3-1066/1333 memory via two SO-DIMMs
PCI Express x4 onboard for extension
Dual-core Intel® Core™ i7-2710QE or i3-2330E processor
The cPCI-6626 is a 6U CompactPCI blade in dual slot width (8HP) form factor compliant with the CompactPCI 2.0 CompactPCI R3.0 standard with hard metric J2 connector,
and part of the cPCI-6625/6 Series (which includes the cPCI-6625 6U CompactPCI PlusIO blade).
The cPCI-6626 is based on the 2nd Generation Intel® Core™ i7-2710QE and Core™ i3-2330E with Mobile Intel® HM65 Express Chipset and is a value 6U CompactPCI 2.0 blade that offers high speed data transfer rate and reliability.
The cPCI-6626 supports dual-channel un-buffered DDR3-1066/1333 memory up to a maximum capacity of 16GB. Graphics is integrated in the processor and output is provided through two VGA ports on the front panel.
The cPCI-6626 features four PCI Express Intel® 82583V Gigabit Ethernet controllers.
The Ethernet connections can be accessed through two Ethernet ports on the front panel and two routed to J2 connector.
The cPCI-6626 also offers six RS-232 serial ports via three RJ-45 connectors (2 serial ports per connector), and four Type-A USB 2.0 ports on the front panel.
Storage features of the cPCI-6626 include a SATA 6 Gb/s direct connector interface with mounting space for a 2.5″ HDD/SSD, a SATA 6Gb/s 7-pin on board and four SATA 3Gb/s ports signals routed to J2 connector.
The cPCI-6626 additionally reserves one PCI Express x4 onboard for a layer 2 expansion card that can provide maximum of four PCI Express x1 via Molex 74960-3018 on the front panel. The cPCI-6626 also provides four PCI Express x1 to the J2 connector.
The cPCI-6626 supports the 32-bit/33MHz CompactPCI interface and operates in a system slot only.
cPCI-6626
Processor & System
CPU FC-PGA Intel® Core™ i7-2710QE Processor, 6MB LLC,
2.1 GHz, TDP 45W
FC-PGA Intel® Core™ i3-2330E Processor, 3MB LLC,
2.2 GHz, TDP 35W
Chipset Mobile Intel® HM65 Express Chipset
Memory Dual channel un-buffered DDR3-1066/1333 SDRAM via two
204-pin SO-DIMM sockets up to 16GB
BIOS AMI EFI BIOS® 64Mbit SPI flash memory
CompactPCI Bus PCI 32-bit/33MHz, 3.3V or 5V universal V(I/O)
Supports operation in system slot only
PICMG Standards PICMG 2.0 CompactPCI R3.0
PICMG 2.30 CompactPCI PlusIO
Connectivity
Ethernet Four PCI-Express Intel® 82583V Gigabit Ethernet controllers
Two 10/100/1000BASE-T ports on front panel and two to J2
Graphics Integrated in Intel® processor, 3D engine
Two DB-15 VGA ports on front panel
Support DirectX 10.1. OpenGL 3.0
USB Four USB 2.0 ports on front panel, four to J2
Serial Port Three RJ-45 ports with two RS-232 signal each, total four
RS-232 ports (Tx, Rx, GND only)
PCI Express Four PCI Express x1 to J2
PCI Express x4 onboard for extension card
Storage
SBC One SATA 6 Gb/s direct connector for 2.5” onboard HDD/
SSD
One SATA 6 Gb/s 7-pin port on-board
Four SATA 3 Gb/s ports to J2
Operating System
OS Microsoft Windows® XP
Microsoft Windows® 7
(Please contact ADLINK for other OS support)
