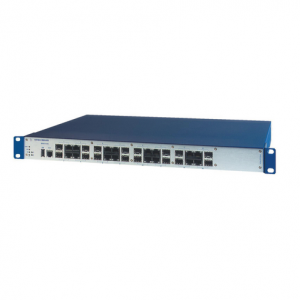

HIRSCHMANN MAR1040-4C4C4C4C9999SM9HRHH Managed Etherne
MAR1040-4C4C4C4C9999SM9HRHH
The MACH1040 is an all-Gigabit version offering 16x 10/100/1000 Mbps RJ45/SFP combo ports to provide countless copper/fiber combinations (including optional 4x PoE ports IEEE 802.3af). All ports support version 2 of the Precision Time Protocol in accordance with IEEE 1588 V2. Layer 3 functionality is available with the R software option for this all-Gigabit switch.
Product description
Description Managed Ethernet/Fast Ethernet/Gigabit Ethernet Industrial Switch, 19″ rack mount, fanless Design
Part Number 942004002
Configurator Part Number 942004999
Port Type and Quantity 16 x Combo ports (10/100/1000BASE TX RJ45 plus related FE/GE-SFP slot)
More Interfaces
Power supply/signaling contact Power supply 1: 3 pin plug-in terminal block; Signal contact 1: 2 pin plug-in terminal block ; Power supply 2: not assembled; Signal contact 2: not assembled
V.24 interface 1 x RJ11 socket
USB interface 1 x USB to connect auto-configuration adapter ACA21-USB
Network size – length of cable
Twisted pair (TP) 0 – 100 m
Single mode fiber (SM) 9/125 µm see Gigabit and Fast Ethernet SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver) see Gigabit and Fast Ethernet SFP modules
Multimode fiber (MM) 50/125 µm see Gigabit and Fast Ethernet SFP modules
Multimode fiber (MM) 62.5/125 µm see Gigabit and Fast Ethernet SFP modules
Network size – cascadibility
Line – / star topology any
Ring structure (HIPER-Ring) quantity switches <10ms (10 switches), <30ms (50 switches), <40ms (100 switches), <60ms (200 switches)
Power requirements
Current consumption at 230 V AC Power supply 1: 110mA max, if all ports are equipped with SFP
Operating Voltage Power supply 1: 110/250 VDC, 110/230 VAC
Power Consumption max. 26 W
Power output in BTU (IT)/h max. 88
Time synchronisation PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), PROFINET IO Protocol
Miscellaneous Manual Cable Crossing
Routing Full Wire-Speed Routing, Port-based Router Interfaces, VLAN-based Router Interfaces, Net-directed Broadcasts, OSPFv2. RIP v1/v2. ICMP Router Discovery (IRDP), Equal Cost Multiple Path (ECMP), Proxy ARP, Static Route Tracking
Multicast routing DVMRP, IGMP v1/v2/v3. PIM-DM (RFC3973), PIM-SM / SSM (RFC4601)
Ambient conditions
MTBF (MIL-HDBK 217F: Gb 25 ºC) 13.6 years
Operating temperature 0-+60 °C
Minimum Storage Temperature -40-+85 °C
Relative humidity (non-condensing) 5-95 %
Mechanical construction
Dimensions (WxHxD) 445 mm x 44 mm x 345 mm
Weight 4.4 kg
Mount Type 19″ control cabinet
IP Protection Rating IP30
Mechanical stability
IEC 60068-2-6 vibration 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD) 8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field 35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst) 4 kV power line, 4 kV data line
EN 61000-4-5 surge voltage DC power line: 2 kV (line/earth), 1 kV (line/line); AC power line: 4 kV (line/earth), 2 kV (line/line); 4 kV data line; IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 Conducted Immunity 10 V (150 kHz – 80 MHz)
EN 61000-4-12 damped oscillatory wave 2.5 kV (line/earth), 1 kV (line/line) (1MHz)
EN 61000-4-16 mains frequency voltage 30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55032 EN 55032 Class A
FCC CFR47 Part 15 FCC 47CFR Part 15. Class A
