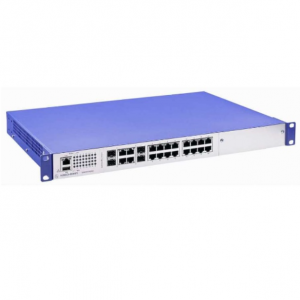

HIRSCHMANN MAR1040-4C4C4C4C9999SM9HPHH05.1.00 industrial switch
HIRSCHMANN MAR1040-4C4C4C4C9999SM9HPHH05.1.00 industrial switch
The full Gigabit version with non-blocking architecture features 16 Gigabit Combo ports and in addition a layer 3 software with static and dynamic routing.
MAR1040-4C4C4C4C9999SM9HPHH
The MACH1040 is an all-Gigabit version offering 16x 10/100/1000 Mbps RJ45/SFP combo ports to provide countless copper/fiber combinations (including optional 4x PoE ports IEEE 802.3af). All ports support version 2 of the Precision Time Protocol in accordance with IEEE 1588 V2. Layer 3 functionality is available with the R software option for this all-Gigabit switch.
Product description
Description Managed Ethernet/Fast Ethernet/Gigabit Ethernet Industrial Switch, 19″ rack mount, fanless Design
Part Number 942004001
Configurator Part Number 942004999
Port Type and Quantity 16 x Combo ports (10/100/1000BASE TX RJ45 plus related FE/GE-SFP slot)
More Interfaces
Power supply/signaling contact Power supply 1: 3 pin plug-in terminal block; Signal contact 1: 2 pin plug-in terminal block ; Power supply 2: not assembled; Signal contact 2: not assembled
V.24 interface 1 x RJ11 socket
USB interface 1 x USB to connect auto-configuration adapter ACA21-USB
Network size – length of cable
Twisted pair (TP) 0 – 100 m
Single mode fiber (SM) 9/125 µm see Gigabit and Fast Ethernet SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver) see Gigabit and Fast Ethernet SFP modules
Multimode fiber (MM) 50/125 µm see Gigabit and Fast Ethernet SFP modules
Multimode fiber (MM) 62.5/125 µm see Gigabit and Fast Ethernet SFP modules
Network size – cascadibility
Line – / star topology any
Ring structure (HIPER-Ring) quantity switches <10ms (10 switches), <30ms (50 switches), <40ms (100 switches), <60ms (200 switches)
Power requirements
Current consumption at 230 V AC Power supply 1: 110mA max, if all ports are equipped with SFP
Operating Voltage Power supply 1: 110/250 VDC, 110/230 VAC
Power Consumption max. 26 W
Power output in BTU (IT)/h max. 88
MAR1040-4C4C4C4C9999SM9HPHH05.1.00
Software
Switching Disable Learning (hub functionality), Double VLAN Tagging (QinQ), Egress Broadcast Limiter per Port, Fast Aging, Flow Control (802.3X), GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier (v1/v2/v3), Independent VLAN Learning, Jumbo Frames, QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, VLAN (802.1Q), Voice VLAN
Redundancy Advanced Ring Configuration for MRP, Fast HIPER-Ring, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Manager, MSTP (802.1Q), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP, Sub Ring Manager
Management Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1. SSHv2. V.24. HTTP, HTTPS, Traps, SNMP v1/v2/v3. Telnet
Diagnostics Management Address Conflict Detection, Address Relearn Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, RMON (1.2.3.9), Port Mirroring 1:1. Port Mirroring 8:1. Port Mirroring N:1. System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump, Link Speed and Duplex Monitoring
Configuration AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40. MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, DHCP Server: Option 43. AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82. Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
Security IP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMP Logging, Local User Management, Remote Authentication via RADIUS, Password change on first login
Time synchronisation PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), PROFINET IO Protocol
Miscellaneous Manual Cable Crossing
Ambient conditions
MTBF (MIL-HDBK 217F: Gb 25 ºC) 13.6 years
Operating temperature 0-+60 °C
Minimum Storage Temperature -40-+85 °C
Relative humidity (non-condensing) 5-95 %
Mechanical construction
Dimensions (WxHxD) 445 mm x 44 mm x 345 mm
Weight 4.4 kg
Mount Type 19″ control cabinet
IP Protection Rating IP30
Mechanical stability
IEC 60068-2-6 vibration 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD) 8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field 35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst) 4 kV power line, 4 kV data line
EN 61000-4-5 surge voltage DC power line: 2 kV (line/earth), 1 kV (line/line); AC power line: 4 kV (line/earth), 2 kV (line/line); 4 kV data line; IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 Conducted Immunity 10 V (150 kHz – 80 MHz)
EN 61000-4-12 damped oscillatory wave 2.5 kV (line/earth), 1 kV (line/line) (1MHz)
EN 61000-4-16 mains frequency voltage 30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55032 EN 55032 Class A
FCC CFR47 Part 15 FCC 47CFR Part 15. Class A
