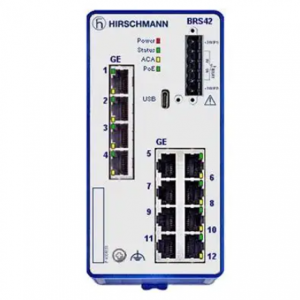

HIRSCHMANN BRS42-0012OOOO-SPCZ99HHSES industrial switch

HIRSCHMANN BRS42-0012OOOO-SPCZ99HHSES industrial switch

Product: BRS42-0012OOOO-SPCZ99HHSEAXX.X.XX

Configurator: BOBCAT configurator

Configurator Description

The Hirschmann BOBCAT Switch is the first of its kind to enable real-time communication using TSN.

To effectively support the increasing real-time

communication requirements in industrial settings, a strong Ethernet network backbone is essential.

This compact managed switches allow for expanded

bandwidth capabilities by adjusting your SFPs from 1 to 2.5 Gigabit – requiring no change to the appliance

Technical Specifications

Product description

Description Managed Industrial Switch for DIN Rail, fanless design All Gigabit type , power sourcing equipment in accordance with IEEE 802.3at (PoE+ inline power) , max. PoE power 240 W

Configurator Part

Number 942170999

Port Type and

Quantity

12 Ports in total: 8x 10/100/1000BASE TX / RJ45. 4x 100/1000Mbit/s fiber ; 8 x PoE(+) Ports (phantom power) ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot

(100/1000 Mbit/s)

More Interfaces

Power

supply/signaling

contact

1 x plug-in terminal block, 6-pin

Local Management

and Device

Replacement

USB-C

BRS42-0012OOOO-SPCZ99HHSES

Network size – length of cable

Twisted pair (TP) 0 – 100 m

Single mode fiber

(SM) 9/125 µm see SFP fiber modules see SFP fiber modules

Single mode fiber

(LH) 9/125 µm (long

haul transceiver)

see SFP fiber modules see SFP fiber modules

Multimode fiber (MM)

50/125 µm see SFP fiber modules see SFP fiber modules

Multimode fiber (MM)

62.5/125 µm see SFP fiber modules see SFP fiber modules

Network size – cascadibility

Line – / star topology any

Power requirements

Operating Voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))

Power Consumption max. 252 W with 240W PoE

Power output in BTU

(IT)/h max. 41

Software

Switching

CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol

(GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo

Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p),

Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 – 1/3., Unknown Multicast

Filtering, VLAN (802.1Q), Voice VLAN, Private VLAN

Redundancy

HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) – Redundancy Client, Media Redundancy Protocol (MRP)

(IEC62439-2) – Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, HIPER-Ring over Link Aggregation, MRP over Link Aggregation,

MSTP (802.1Q), Sub Ring Manager

Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2. HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3. SNMPv3 Traps, Telnet, DNS Client,

ITxPT Module Inventory, OPC-UA Server, Service Discovery (bonjour), SNMPv1/v2 Read-Only

Diagnostics

Configuration Check Dialog, Copper Cable Test, Device Status Indication, Duplex Mismatch Detection, LEDs, Link Flap Detection, Link Speed and Duplex Monitoring, MAC Notification,

Management Address Conflict Detection, Overload Detection, Persistent Logging on ACA, Port Mirroring 1:1. Port Mirroring 8:1. Port Mirroring N:1. Port Mirroring N:2. Port Monitoring

with Auto-Disable, RMON (1.2.3.9), Self-Tests on Cold Start, SFP Management, Signal Contact, Switch Dump, Syslog, System Information, TCPDump, Email Notification, Loop

Protection, RSPAN, SFLOW

Configuration

Auto Disable, AutoConfiguration Adapter ACA21/22 (USB), Automatic Configuration Undo (roll-back), Backup config on a remote server when saving, BOOTP/DHCP Client with

Auto-Configuration, Clear config but keep IP settings, CLI script handling over ENVM at boot, CLI Scripting, Command Line Interface (CLI), Configuration Fingerprint, Context-sensitive

Help, DHCP Relay with Option 82. DHCP Server: per Port, DHCP Server: Pools per VLAN, Full-featured MIB Support, HiDiscovery, HTML5 based Management, USB-C Management

support, XML-based Configuration File, Interface Shutdown via Tracking

Security

Access to Management restricted by VLAN, Appropriate Use Banner, Audit Trail, Basic ACL, CLI Logging, Configurable Number of Login Attempts, Configurable Password Policy,

Denial-of-Service Prevention, Device Security Indication, DoS Prevention Drop Counter, Guest/unauthenticated VLAN, HTTPS Certificate Management, Ingress VLAN-based ACL,

Integrated Authentication Server (IAS), Local User Management, MAC-based Port Security, Multiple Privilege Levels, Password change on first login, Port-based Access Control with

802.1X, RADIUS Client, RADIUS VLAN Assignment, Remote Authentication via RADIUS, Restricted Management Access, Secure Boot, Signed Firmware Images, SNMP Logging, User

Account Locking, VLAN-based ACL, ACL Flow-based Limiting, DHCP Snooping, Dynamic ARP Inspection, Format options for MAC authentication bypass, Ingress IPv4-based ACL,

Ingress MAC-based ACL, IP Source Guard, LDAP, MAC Authentication Bypass, MACSec Support, Multi-Client Authentication per Port, TACACS+ Client, Time-based ACL

Time synchronisation 802.1AS, 802.1AS-2020. BC with Up to 8 Sync / s, Buffered Real Time Clock, PTPv2 Boundary Clock, PTPv2 Transparent Clock two-step, SNTP Client, SNTP Server

Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol

Miscellaneous Digital IO Management, Manual Cable Crossing, Port Power Down, , PoE (802.3af), PoE+ (802.3at), PoE+ Manual Power Management, PoE Fast Startup

Ambient conditions

MTBF (Telcordia

SR-332 Issue 3) @

25°C

2 622 278 h

Operating temperature 0-+60

Relative humidity

(non-condensing) 1- 95 %

Mechanical construction

Dimensions (WxHxD) 73 mm x 138 mm x 115 mm

Weight 550 g

Housing PC-ABS

Mount Type DIN Rail

IP Protection Rating IP30

Mechanical stability

IEC 60068-2-6

vibration 5 Hz … 8.4 Hz with 3.5 mm amplitude; 2 Hz … 13.2 Hz with 1 mm amplitude; 8.4 Hz … 200 Hz with 1 g; 13.2 Hz … 100 Hz with 0.7 g

IEC 60068-2-27 shock 15 g, 11 ms duration

EMC interference immunity

EN 61000-4-2

electrostatic

discharge (ESD)

6 kV contact discharge, 8 kV air discharge

EN 61000-4-3

electromagnetic field 10 V/m (80-2000 MHz); 5 V/m (2000-2700 MHz); 3 V/m (5100-6000 MHz)

EN 61000-4-4 fast

transients (burst) 2 kV power line, 2 kV data line

EN 61000-4-5 surge

voltage power line: 2 kV (line/earth) and 1 kV (line/line); data line: 2 kV

EN 61000-4-6

Conducted Immunity 10 V (150 kHz-80 MHz)
