MACH1130 Hirschmann Industrial Switch

The Hirschmann MACH1130 (often referred to by its configuration prefix MAR1130) is a premier, ultra-rugged managed industrial Ethernet switch. Designed as part of the esteemed MACH1000 product family, it is engineered specifically for mission-critical networks that demand absolute uptime under extreme environmental stress.

Unique Product Description

The Hirschmann MACH1130 is not your typical network switch. It represents the pinnacle of substation-class and heavy industrial networking, packing immense reliability into a compact 19″ rack-mount footprint.

While standard commercial switches fail under temperature spikes, vibration, or intense electromagnetic interference (EMI), the MACH1130 thrives. Boasting a fanless cooling design and heavy-duty metal housing, it handles up to 24 customized ports with optional Gigabit combo uplink capabilities (RJ45 and/or SFP). It operates continuously without packet loss, making it the preferred “silent guardian” inside harsh industrial enclosures.

Product Advantages and Features

The MACH1130 combines high-density connectivity with uncompromising physical and digital resilience.

Substation-Class Certifications: Fully exceeds the strict IEC 61850-3 and IEEE 1613 standards required for electric power substation communication.

Extreme Temperature Resilience: Operates seamlessly in temperatures ranging from -40°C to +85°C (with optional conformal coating for humid/corrosive environments).

Zero-Maintenance Fanless Build: Eliminates moving parts entirely to prevent dust intake and mechanical wear, significantly extending the Mean Time Between Failures (MTBF).

Highly Configurable Media-Mix: Supports custom tailoring—all copper, all fiber (multimode/singlemode), or custom hybrid layouts to adapt to long-distance runs or local drops.

Industrial Redundancy (HiVision Supported): Features rapid recovery protocols like MRP (Media Redundancy Protocol), RSTP, and MSTP to guarantee sub-millisecond failover protection.

Technical Specifications Matrix

Application Cases

The MAR1130/MACH1130 is trusted globally across sectors where network downtime translates to direct physical or financial risk:

Electrical Power Substations: Used as the core communication layer connecting Intelligent Electronic Devices (IEDs) under high electromagnetic noise, ensuring steady telemetry flow and command execution.

Railway and Transportation (EN 50155): Handles wayside control, signaling, and passenger information systems where intense physical shock, constant vibration, and varying temperatures are daily norms.

Oil & Gas / Hazardous Locations: Installed in oil fields, pipelines, and chemical processing facilities requiring safe, ignition-proof networking components.

High-End Marine Systems: Provides redundant, corrosion-resistant networking hubs for ships and offshore platforms.

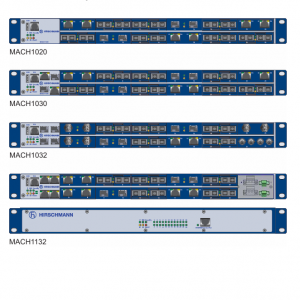

Related Models & Same Series Options

Because of its modular nature, the MACH1000 family is customized via configuration codes. Users often compare or pair the MACH1130 with these key models in the series:

MACH1020 / MAR1020: Similar rugged 19″ build, offering Fast Ethernet ports without the optional high-density Gigabit configuration found on the 1030/1130 series.

MACH1030 / MAR1030: The directly related sibling configuration specializing in Fast Ethernet with specialized combo Gigabit Uplink architectures.

MACH1040 / MAR1040: Full-Gigabit rugged switch designed for high-throughput backbones in extremely demanding field applications.

GRS1030/1130 (GREYHOUND Series): Modern equivalents offering hot-swappable media modules and upgraded software capabilities for future-proof designs.

Installation and Maintenance

Proper handling and deployment guarantee that the MACH1130 achieves its intended multi-decade operational lifespan.

1.Mounting and Rail Setup：Pre-installation。

Install sliding or mounting rails in your 19″ cabinet to support the physical weight of the switch. Ensure at least 10 cm of clearance in front of and 5 cm above ventilation slits for passive heat dissipation.

2.Grounding the Chassis：Critical Safety Step。

Connect the ground screw on the back of the device to your cabinet’s protective conductor before making any other electrical connections.

3.Wiring Power Supplies：Redundancy Configuration。

Strip and secure power wires to the terminal blocks. If configuring redundant lines, connect both primary and secondary feeds (AC or DC as configured). Ensure in-line fuses are in place on the supply cables.

4.Media Connections & Commissioning：Final Step。

Connect copper RJ45 or fiber optic SC/ST patch cables. Power on the device, log into the web interface or CLI to configure your VLANs, and backup your initial configuration settings onto an ACA (Auto-Configuration Adapter) USB device.

Maintenance Tip: The fanless design removes the need for regular air filter swaps. Ensure the exterior housing remains free of heavy dust blankets, and use Industrial HiVision software to monitor live internal temperatures and link statuses remotely.

MACH1000
