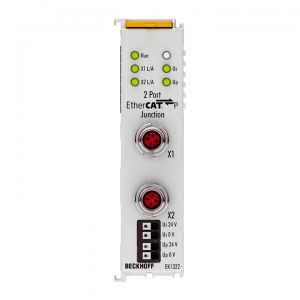

Beckhoff EK1322 | 2-port EtherCAT P junction with feed-in
EK1322 | 2-port EtherCAT P junction with feed-in
The EK1322 2-port EtherCAT P junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT P star topologies.
A modular EtherCAT P star hub can be realized by using several EK1322 units in a station.
Special features:
connection technology: 2 x P-coded M8 sockets
can be used for configuring an EtherCAT P star topology
The front terminal points are used for the system and sensor supply US and the peripheral voltage for actuators UP for the EtherCAT P outputs.
A connection to individual EtherCAT P devices or even complete EtherCAT P segments can be established via the P-coded M8 sockets, which enable the connection of an EtherCAT P cable with M8 connector.
EK1322
Technical data EK1322
Task within EtherCAT system coupling of EtherCAT P junctions
Data transfer medium EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface 2 x M8 socket, P-coded, shielded
Power supply external feed-in: 24 V DC (-15 %/+20 %) for US and UP
Sum current max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US typ. 3 mA
Current consumption from UP typ. 3 mA
Current consumption E-bus 200 mA
Operating temperature -25…+55°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL
Technical data
Housing data
To top
Housing data EK-24-PWR
Design form compact terminal housing with signal LEDs
Material polycarbonate
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking –
Wiring depending on module
Connection cross-section s*: 0.2…1.5 mm²,
st*: 0.2…1.5 mm²,
f*: 0.25…0.75 mm²
Connection cross-section AWG s*: AWG28…14.
st*: AWG28…14.
f*: AWG28…14
Stripping length 8…9 mm
Dimensions (W x H x D) 24 mm x 100 mm x 52 mm without connector
