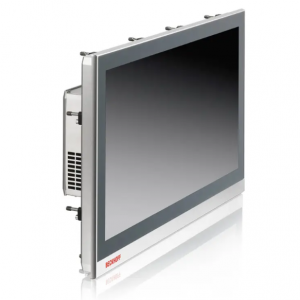

CP22xx | Multi-touch built-in Panel PC

The CP22xx built-in Panel PC series is characterized by a modern operating concept with multi-touch display as well as an advanced, elegant device design.

It is designed for installation in the front of a control cabinet. The CP22xx combine reliable Beckhoff Control Panel design with state-of-the-art Industrial PC technology.

The right display size is available for every application – in landscape or portrait orientation (horizontal/vertical).

With their highly integrated 3½-inch motherboards, the CP22xx built-in

Industrial PCs represent a high-performance platform for machine design and plant engineering applications that can be

used in conjunction with TwinCAT automation software under Windows 10 IoT Enterprise.

Product variants    Processor    Product status

CP2219-0010

CP22xx-0040    Intel® Celeron®, 2 cores (TC3: 50*),

Intel® Core™ i3. 4 cores (TC3: 60*),

Intel® Core™ i5. 6 cores (TC3: 70*) or

Intel® Core™ i7. 8 cores (TC3: 80*)

(11th generation)    regular delivery

CP22xx-0030    Intel® Celeron®, 2 cores (TC3: 50*),

Intel® Pentium®, 2 cores (TC3: 50*),

Intel® Core™ i3. 4 cores (TC3: 60*),

Intel® Core™ i5. 6 cores (TC3: 70*) or

Intel® Core™ i7. 8 cores (TC3: 80*)

(8th/9th generation)    regular delivery

CP22xx-0020    Intel® Celeron®, 2 cores (TC2. TC3: 50*),

Intel® Pentium®, 2 cores (TC2. TC3: 50*),

Intel® Core™ i3. 2 cores (TC2. TC3: 60*),

Intel® Core™ i5. 4 cores (TC2. TC3: 70*),

Intel® Core™ i7. 4 cores (TC2. TC3: 80*)

(6th generation)

Intel® Core™ i3. 2 cores (TC3: 60*),

Intel® Core™ i5. 4 cores (TC3: 70*),

Intel® Core™ i7. 4 cores (TC3: 80*)

(7th generation)    regular delivery (not recommended for new projects)​
