LSS Operations

This section describes LSS operations required for communications with the ID

Controller and settings in the LSS’s System Setup necessary for the ID Control

ler. Perform these operations before using the LSS for the ID Controller.

Caution Be sure to set the correct PC model (ID Controller) before using the LSS. All LSS

data will be cleared if the PC model specified in the LSS System Setup is

changed from one PC group to another. (Even if the PC model is changed within

the same group, the I/O table, I/O comments, time chart data, data trace data,

and step trace data are deleted.)

PC Model for ID Controller

Expansion Instructions

Program Transfer

Set the PC model to the CQM1 when using the LSS for the ID Controller. Press

the K Key on the System Setup Menu to specify the PC model setting and then

press the E Key to specify the CQM1. (The LSS treats the ID Controller as a

CQM1 PC.)

Go to online LSS operations and transfer the expansion instructions from the ID

Controller to the LSS. Press the A Key from the online Utility Menu and then con

firm the operation on the prompt that appears next.

When transferring the program from the ID Controller to the computer running

the LSS, specify “E:SEND TO END.” This will ensure that the expansion instruc

tions table will transferred to the computer after transfer of the program has been

completed.

Note To avoid having to go online with the ID Controller to transfer the expansion

instructions each time you use the LSS for the ID Controller, you can transfer

them to the LSS once and then save them to disk using the A:RETRIEVE/SAVE

INSTRUCTIONS operation on the offline Utility Menu. Once the expansion

instructions have been saved to disk, the A:RETRIEVE/SAVE INSTRUCTIONS

operation can be used to retrieve them to use the LSS offline for the ID Control

ler

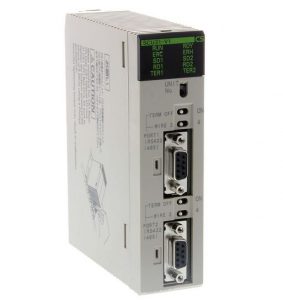

CS1W-SCU31-V1

SSS Operations

This section describes SSS operations required for communications with the ID

Controller and settings in the SSS’s System Setup necessary for the ID Control

ler. Perform these operations before using the SSS for the ID Controller.

Caution Be sure to set the correct PC model (ID Controller) before using the SSS. All SSS

data will be cleared if the PC model specified in the SSS System Setup is

changed from one PC group to another. (Even if the PC model is changed within

the same group, the I/O comment, I/O table, time chart data, data trace data, and

step trace data are deleted.)

PC Model for ID Controller

Expansion Instructions

Program Transfer

Set the PC model to the CQM1 when using the SSS for the ID Controller. Press

the K Key on the System Setup Menu to specify the PC model setting and then

press the H Key to specify the CQM1. (The SSS treats the ID Controller as a

CQM1 PC.)

The expansion instructions for the ID Controller are already registered in the

SSS. It is thus not necessary to transfer the expansion instructions when using

the SSS; just be sure to transfer the instructions table.

When transferring the program from the ID Controller to the computer running

the SSS, specify “E:SEND TO END.” This will ensure that the expansion instruc

tions table will transferred to the computer after transfer of the program has been

completed​
