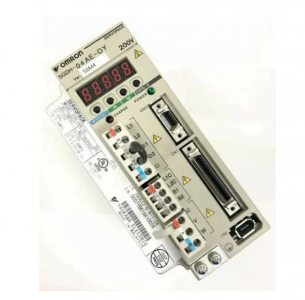

OMRON SGDH-04AE-OY Servo Drive

OMRON SGDH-04AE-OY Servo Drive

Note:1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3.When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Connect M3 crimped terminals.

5. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring).

Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring

(internal wiring).

Wires:AWG24 to AWG18 (equal to a cross-sectional area of 0.21 to 0.82 mm2) braided or solid wires

Note:Refer to Precautions When Wiring E5GC (Controllers with Screwless Clamp Terminal Blocks) on page 132 for information on wiring

Controllers with screwless clamp terminal blocks.

Use two Mounting Adapters, either on the top and bottom or on the right and left.

•Setup Tool ports are provided as standard feature. Use these ports to connect a computer to the Digital Temperature Controller.

The E58​

CIFQ2 USB-Serial Conversion Cable is required to connect to the port on the side panel.

The E58-CIFQ2 USB-Serial Conversion Cable

and E58-CIFQ2-E Communications Conversion Cable are required to connect to the port on the bottom panel.

(You cannot leave either

SGDH-04AE-OY

port connected constantly during operation.)

•To install the Temperature Controller, insert it into a square hole in a panel with a thickness of 1 to 8 mm, and then insert the enclosed

adapter so that it locks into the grooves on the top and bottom or on the left and right of the rear case.

•Tighten the two mounting screws on the top and bottom or on the right and left of the Mounting Adapters alternately little by little to main

tain a balance, and tighten them to a torque of between 0.29 and 0.39 N·m.

•When two or more Temperature Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable

operating temperature range given below.

Horizontal group mounting: −10 to 55°C

•Use Temperature Controllers with Screwless Clamp Terminal Blocks for vertical group mounting

To mount the Temperature Controller so that it is waterproof,

insert the Waterproof Packing onto the Temperature Controller.

Group mounting does not allow waterproofing.
