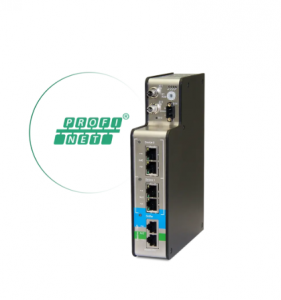

ibaBM-PN: Bus monitor for PROFINET IO

ibaBM-PN: Bus monitor for PROFINET IO

2 independent, internal PN devices for connecting to 1 or 2 PROFINET lines

Capturing and recording up to 1440 bytes per PN device

Supports RT (real time) and IRT communication (isochronous real time)

Supports MRP (media redundancy protocol)

Flexible adjustment of sampling rate and data formats with 32Mbit Flex

Support of ibaNet protocol 32Mbit Flex

S2 system redundancy

Flexible adjustment of sampling rate and data formats with 32Mbit Flex

ibaBM-PN

Introduction

ibaDAQ-C can be used as stand-alone unit to acquire and record data. ibaDAQ-C inte

grates a complete ibaPDA system, an internal solid state disk (SSD) with sufficient

memory space and powerful integrated Intel®-Atom™-CPU. The extremely slim and ro

bust compact unit is designed to fit into the extremely confined space of control cabinets,

test stands, cranes, etc.

The range of applications includes:

 Mobile measurement acquisition

 Start-up

 Troubleshooting

 Test stands

 Calculation of process parameters

Data acquisition via Ethernet

ibaDAQ-C provides 2 independent Ethernet interfaces with standard 1 Gbit connection.

This allows ibaDAQ-C to capture and record Ethernet-based protocols. The license for

the communication interface ibaPDA-Interface-MQTT, for the MQTT messaging protocol,

as well as the ibaPDA-Interface-PLC-Xplorer license are part of the delivery. For other

protocols and modules, separate licenses are required for the respective communication

interfaces. Using the interfaces of ibaPDA-PLC-Xplorer, it is possible to aquire and rec

ord data from different PLC systems:

 S7-Xplorer (interface to SIMATIC S7 systems)

 AB-Xplorer (interface to Allen-Bradley systems)

 ABB-Xplorer (interface to AC 800M/PEC systems)

 B&R-Xplorer (interface to B&R systems)

 Bachmann-Xplorer (interface to M1 systems)

 Codesys-Xplorer (interface to CODESYS based systems)

 Logix-Xplorer (interface to ControlLogix systems)

 MELSEC-Xplorer (interface to Mitsubishi MELSEC systems)

 OMRON-Xplorer (interface to OMRON systems)

 Sigmatek-Xplorer (interface to SIGMATEK systems)

 TwinCAT-Xplorer (interface to Beckhoff systems)

Integrated cloud connectivity

With the included license ibaPDA-Data-Store-MindSphere-16. data can be written di

rectly into the MindSphere cloud and processed there.

The license ibaPDA-Data-Store-MQTT-16 enables data streaming of 16 signals via the

MQTT messaging protocol and is also included in the scope of delivery.

Configuration

Equipped with connections for a monitor, mouse, and keyboard, ibaDAQ-C is as conven

ient to operate as an ibaPDA system running on a computer. Moreover, it can be oper

ated with an ibaPDA client connected via the network.

The ibaPDA version in ibaDAQ-C provides the full functional scope of ibaPDA and a

license for 64 signals in the standard version. The number of signals can be increased

to 1024 with a license extension.

Connection to several networks

With the two independent 1Gbit/s Ethernet interfaces, ibaDAQ-C can operate in two net

works and thus enable the separation of IT and process networks. This separation al

lows, for example, databases and storage systems to be connected to ibaDAQ-C, which

are located in the IT network.

​
