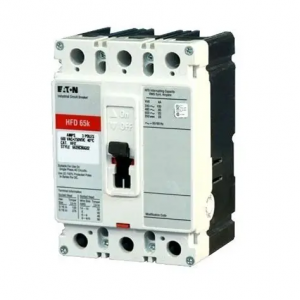

Eaton Cutler-Hammer HFD3030 6639C86G87 3 Pole 30A 600V Circuit Breaker
Eaton Cutler-Hammer HFD3030 6639C86G87 3 Pole 30A 600V Circuit Breaker
HFD3030
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 30 A, 600 Vac, 250 Vdc, Load side, 50/60 Hz
General specifications
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
HFD3030
Product Length/Depth
3.38 in
Product Height
6 in
Product Width
4.13 in
Product Weight
4.3 lb
Certifications
UL Listed
Product specifications
Amperage Rating
30 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
HFD3030 6639C86G87
Circuit breaker type
HFD
Circuit breaker frame type
Complete breaker
Series
Series C
Terminals
Load side
Frame
F
Frequency rating
50/60 Hz
Interrupt rating
100 kAIC at 240 Vac
65 kAIC at 480 Vac
Number of poles
Three-pole
Eaton HFD3030
Eaton Series C complete molded case circuit
breaker, F-frame, HFD, Complete breaker, Fixed
thermal, Fixed magnetic trip type, Three-pole, 30
A, 600 Vac, 250 Vdc, Load side, 50/60 Hz
General specifications
PRODUCT NAME Eaton Series C complete
molded case circuit breaker
CATALOG NUMBER HFD3030
PRODUCT
LENGTH/DEPTH 3.38 in
PRODUCT HEIGHT 6 in
PRODUCT WIDTH 4.13 in
PRODUCT WEIGHT 4.3 lb
