Eaton SPN6403CEAXX2F Power Defense SB

SPN6403CEAXX2F

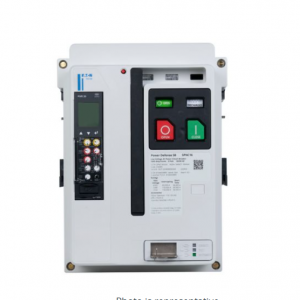

Eaton Power Defense SB, Double Narrow, 4000 A, 65 kA, 3-Pole, Drawout w/ MR2. PXR20LSIGAM, 6403CEAXX2F

Eaton SPN6403CEAXX2F

Eaton Power Defense SB, Double Narrow, 4000 A,

65 kA, 3-Pole, Drawout w/ MR2. PXR20LSIGAM,

6403CEAXX2F

General specifications

PRODUCT NAME Eaton Magnum low voltage

power circuit breaker

CATALOG NUMBER SPN6403CEAXX2F

UPC 786689742171

PRODUCT

LENGTH/DEPTH 16.3 in

PRODUCT HEIGHT 16.8 in

PRODUCT WIDTH 24.9 in

PRODUCT WEIGHT 177 lb

SPN6403CEAXX2F

Delivery program

AMPERAGE RATING

4000 A

APPLICATION

UL 891

FRAME

Double narrow

NUMBER OF POLES

Three-pole

TYPE

Power Defense SB

Physical details

MOUNTING METHOD

Drawout

NUMBER OF POLES

Three-pole

Technical data – Mechanical

MOUNTING METHOD

Drawout

INTERRUPT RATING

65 kA

General information

ACCESSORIES

MR2

APPLICATION

UL 891

FRAME

Double narrow

SERIES

Magnum

TRIP TYPE

PXR20

Technical data – Electrical

4000 A

RATED UNINTERRUPTED

CURRENT (IU)

VOLTAGE RATING

600 VAC

Technical information

INTERRUPT RATING

65 kA

AMPERAGE RATING

4000 A

RATED UNINTERRUPTED

CURRENT (IU)

4000 A

VOLTAGE RATING

600 VAC
