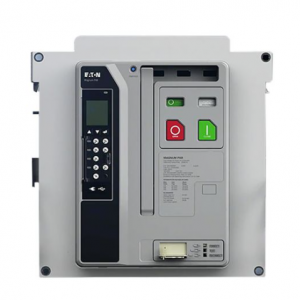

Eaton MPN8403VEAXX2H Magnum low voltage power circuit breaker
MPN8403VEAXX2H
Eaton Magnum low voltage power circuit breaker, Magnum PXR,
Double narrow frame, 4000 A (ABCABC), 85 kA, Three-pole, Fixed vertical mounting, PXR20 LSIAM trip unit
Eaton MPN8403VEAXX2H
Eaton Magnum low voltage power circuit breaker,
Magnum PXR, Double narrow frame, 4000 A
(ABCABC), 85 kA, Three-pole, Fixed vertical
mounting, PXR20 LSIAM trip unit
General specifications
MPN8403VEAXX2H
PRODUCT NAME Eaton Magnum low voltage
power circuit breaker
CATALOG NUMBER MPN8403VEAXX2H
UPC 786689609207
PRODUCT
LENGTH/DEPTH 16.3 in
PRODUCT HEIGHT 16.8 in
PRODUCT WIDTH 24.9 in
PRODUCT WEIGHT 177 lb
Delivery program
FRAME
Double narrow
NUMBER OF POLES
Three-pole
TYPE
Magnum PXR
Physical details
NUMBER OF POLES
Three-pole
Technical data – Mechanical
INTERRUPT RATING
85 kAIC
General information
FRAME
Double narrow
SERIES
| ABB | CTI 21-P 3BDH000741R1 |
| EPRO | PR9268/600-000 |
| HONEYWELL | FC-UDI501 |
| GEA | 005-4050-710 |
| HIMA | F3237 |
| Woodward | 8237-2597 |
| Woodward | 8200-1509 |
| triconex | 3721 |
| triconex | 3503E |
| ALSTOM | 029.359 325 |
| ALSTOM | 029.366 817 |
| Eaton | XV-102-D6-70TWRC-10 |
| ROLLS-ROYCE | 5990-PCI1022 |
| GE | MIVII1000E00HI00 |
| GE | MIFIIPA55E20HI00 |
| Honeywell | 8C-PAIHA1 51454470-275 |
| Honeywell | 8C-TAIXA1 51307127-175 |
| GE | MIFIIPA55E20HI00 |
Magnum
TRIP TYPE
PXR20 LSI ARMS
Technical data – Electrical
4000 A
RATED UNINTERRUPTED
CURRENT (IU)
Technical information
INTERRUPT RATING
85 kAIC
RATED UNINTERRUPTED
CURRENT (IU)
4000 A
