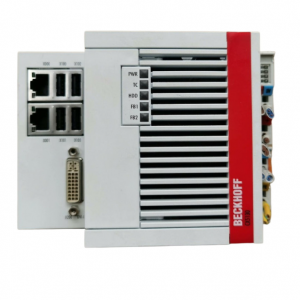

Beckhoff CX5130-0125    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 3 runtime (XAR)

CX5130-0125    CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 3 runtime (XAR)

The CX5230 is an Embedded PC based on the Intel Atom® x5-E3930 with a clock speed of 1.3 GHz (dual-core) and 4 GB DDR4-RAM.

The basic equipment includes two independent, Gigabit-capable Ethernet interfaces as well as four USB 3.0 and one DVI-D interface.

A wide range of additional connection options or gateway functions are available thanks to the optional interface and I/O level, which can consist of either E-bus or K-bus terminals and can be fitted ex factory.

In addition, a system module or fieldbus module from the CX2000 series can be plugged in via the high-pole connection on the left-hand side of the device.

Although the total number of plug-in modules of the type CX2500-xx is limited to one with the CX5200 series, it is possible in this way, for example, to implement two further Gigabit-Ethernet interfaces or four further USB interfaces or a further fieldbus interface.

Furthermore, the CX5230 is characterized by an internally electrically isolated power supply unit, built-in 1-second UPS, low power consumption and fanless cooling.

Technical data    CX5130

Processor    Intel Atom® E3827. 1.75 GHz

Number of cores    2

Flash memory    slot for CFast card and microSD card, cards not included

Main memory    4 GB DDR3 RAM (not expandable)

1-second UPS    integrated (1 MB on CFast card)

Interfaces    2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0. 1 x optional interface

Cooling    passive

Diagnostics LED    1 x power, 1 x TC status, 1 x flash access, 2 x bus status

Clock    internal battery-backed clock for time and date (battery exchangeable)

Operating system    Windows Embedded Compact 7. Windows Embedded Standard 7. Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD

Control software    TwinCAT 2 runtime

TwinCAT 3 runtime (XAR)

I/O connection    E-bus or K-bus, automatic recognition

Power supply    24 V DC (-15%/+20%)

UPS OCT-capable    no

CX5130-0125

Current supply E-bus/K-bus    2 A

Max. power consumption    14 W

Max. power consumption (with loading UPS)    20 W

Max. power consumption E-bus/K-bus    10 W (5 V/max. 2 A)

Weight    approx. 1095 g

Dimensions (W x H x D)    142 mm x 100 mm x 92 mm

Relative humidity    95%, no condensation

Operating temperature    -25…+60°C

Storage temperature    -40…+85°C

Vibration/shock resistance    conforms to EN 60068-2-6/EN 60068-2-27
