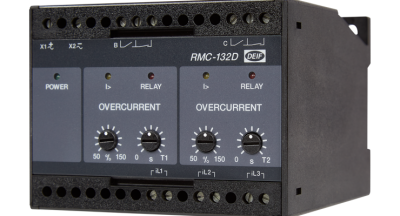

DEIF RMC-132D Current relay

RMC-132D

Current relay

This double over-current relay is applied in cases where protection against over-currents at two levels is required.

This double over-current relay is applied in cases where protection against over-currents at two levels is required.

The versatile unit features a number of adjustable parameters.

RMC-132D

Variants

RMC-111D

Short circuit

I>>: 100 to 400 %. <50 mS response time

RMC-121D

Short circuit

I>>: 100 to 400 %. 2 sets of contacts (parallel)

RMC-122D

Short circuit and over-current

I>>: 100 to 400 %, I>: 50 to 150 %

Combined functionality

RMC-131D

Differential current

I>>: 100 to 400 %. 2 sets of contacts (parallel).

Features

Double over-current relay (I> + I>)

ANSI code 50 and 51

Measurement of 3-phase currents

LED indication of fault condition

Timer-controlled tripping

LED indication for activated relay

35 mm DIN rail or base mounting
