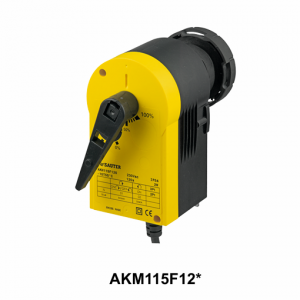

AKM 105. 115: Rotary actuator for ball valve

Improving energy efficiency

Torque-dependent cut-off facility for efficient usage of energy

Features

• For actuating 2- and 3-way ball valves (types VKR and BKR)

• For controllers with a switching output (2-/3-point control)

• Fitted to ball valves up to DN 50 without the need to use tools

• Synchronous motor with electronic activation and cut-out

•Maintenance-free gear unit

• Gear unit can be disengaged in order to position the ball valve manually (using the lever)

• Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve

• Fitting vertically upright to horizontal, not suspended

echnical data

Power supply

Power supply 230 V~ ±15%, 50…60 Hz

Power supply 24 V~ ±20%, 50…60 Hz

Parameters

Power cable 1.2 m, 3 × 0.75 mm2

Response time Min. 200 ms

Angle of rotation 90°

Ambient conditions

Admissible ambient temperature–10…55 °C

Admissible ambient humidity 5…95% rh, no condensation

Temperature of medium1) Max. 100 °C

AKM105F120

Operation

Control 2-/3-point

Construction

Weight 0.7 kg

Housing Lower section black, upper section

yellow

Housing material Fire-retardant plastic

Standards and directives

Type of protection2) IP 54 as per EN 60529 (horizontal)

Protection class 24 V III as per IEC 60730

Protection class 230 V II as per IEC 60730

Over-voltage categories III

Degree of contamination II

CE conformity as per Directive 2006/95/EC EN 60730-1/EN 60730-2-14

EMC Directive 2004/108/EC EN 61000-6-1. EN 61000-6-2

EN 61000-6-3. EN 61000-6-4

Overview of types

Type Power consumption Running time Torque Voltage

AKM105F100 2.4 W, 4.5 VA 30 s 4 Nm 230 V~

AKM105F120 2.0 W, 4.0 VA 120 s 4 Nm 230 V~

AKM105F122 1.6 W, 1.7 VA 120 s 4 Nm 24 V~

AKM115F120 2.0 W, 4.0 VA 120 s 8 Nm 230 V~

AKM115F122 1.6 W, 1.7 VA 120 s 8 Nm 24 V~
