AEROTECH Modular System Control Console
Modular System Control Console

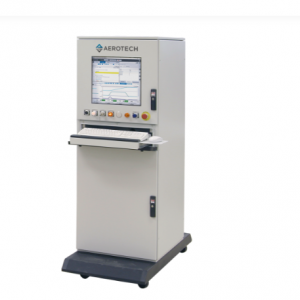

The system control console is used as an operator workstation for motion systems and subsystems. Drives, PC, safety, I/O and other electrical components are housed within the console making for a self-contained, modular workstation.
Design Features
Operator interface with keyboard, mouse, screen, indicator lights and buttons
Internal rack mount for standard electronics mounting
Customizable electronics panels
Lockable door access to front and back of console
Electronics heat sources isolated from system mechanics for highest possible system performance
Modular System Control Console
TV Series Transformers
TV Series Transformers are high-quality isolation and autotransformers. They are fully compatible with Aerotech’s drive systems that require separate transformer
Design Features
High-quality isolation transformer
Fully compatible with Aerotech’s drive systems that require separate transformers
Conservatively rated, open-frame units with mounting brackets and screw terminals or flying leads for easy installation
TV Series Transformers Specifications
| Model | Units | TV1.5 | TV2.5 | TV5 | TV0.3-28 | TV0.3-28-56-ST | TV0.3-56 | TV0.5-28-56 |
| Type | Type | Isolation | Isolation | Isolation | Isolation | Isolation | Isolation | Isolation |
| Rating | kVA | 1.5 | 2.5 | 5 | 0.3 | 0.3 | 0.3 | 0.5 |
| Inputs | VAC | 104, 115, 208, 230 | 104, 115, 208, 230 | 104, 115, 208, 230 | 100, 115, 200, 230 | 100, 115, 200, 230 | 100, 115, 200, 230 | 100, 115, 200, 230 |
| Terminals | Screw-type pressure lugs | Screw-type pressure lugs | Screw-type pressure lugs | Flying leads | Screw Type | Screw Type Flying Leads | Screw Type Flying Leads | |
| Weight | kg (lb) | 17 (38) | 23 (51) | 35 (78) | 3.6 (8) | 4.7 (10.4) | 3.6 (8) | 4.9 (10.7) |
| Outputs | VAC | 28, 43, 56, 70, 115 | 28, 43, 56, 70, 115 | 28, 43, 56, 70, 115 | 28 | 28, 56 | 56 | 28, 56 |
