CTI 2500C-PADP-120V 120VAC 50W Power Supply for Series 500

2500C-PADP-120V 120VAC 50W Power Supply for Series 500

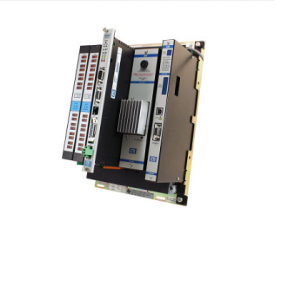

The 2500C-PADP-120V has been designed to replace the Siemens/TI 500 Series Power Supply.

It plugs directly into the base using the original 500 mounting design and requires no wiring changes.

This power supply provides power for the CPU and all IO modules plugged in the 500 Chassis. It cannot be reused in a CTI 2500 Series base.

Features

Series 500 base format

Direct replacement for Siemens/TI 110/220 VAC 50/60Hz power supply

Maximum 50watts backplane power

100mSec holdup time

No wiring changes

Allows replacement of failed Series 500 power supplies with inexpensive and widely available CTI 2500 Series® modules

Field Wiring Connector Wired to the 500 base

Input Voltage Operating

2500C-PADP-120V

Range

80-264 VAC, 47-63Hz, single phase

Total Wattage Rating 50 watts maximum output

@ 0 to 60ºC

Steady State Input Current

at full Load

1.10 Amps max @ 90VAC

0.90 Amps max @ 120VAC

0.45 Amps max @ 240VAC

Peak Inrush Current 9.4 Amps max @ 120VAC

18.7 Amps max @ 220VAC

Fusing  1.25 Amp slow blow 240VAC,

3 x 20mm front panel accessible

Littelfuse P/N  02191.25MXAP

Hold Up Time 57 mSec @ 50 Watt Full Load

Module Size Designed to mount directly in the

500 IO base

Isolation  1500VAC: 110/220 VAC-to-Backplane

500VDC: Chassis-to-Backplane

1500VAC: 110/220 VAC-to-Chassis

IEC 60950-1

Operating Temp Range 0ºC to 60ºC (32ºF to 140ºF)

Storage Temperature -40ºC to 85ºC (-40ºF to 185ºF)

Relative Humidity 5% to 95% (non-condensing)

Shipping Weight 2.0 lb. (0.91 Kg)

Agency Approvals Pending UL, ULC, FM(Class 1. Div 2), CE

◊ Note:  All measurements are made from a power supply at 25ºC .

The 2500C-PADP-120V has been designed to replace

the Siemens® Simatic 500 base Power Supply. It

plugs directly into the base using the original 500

mounting design and requires no wiring changes. This

power supply provides power for the CPU’s, RBC’s

and all IO modules plugged in the 500 Chassis.
