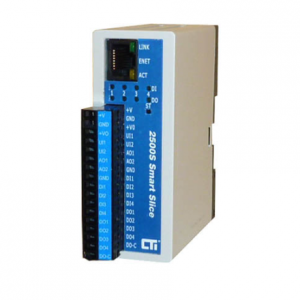

CTI 2500S-26-1050 Slice I/O, Ethernet, 8DIO / 2UAI

2500S-26-1050 Slice I/O, Ethernet, 8DIO / 2UAI

The 2500S family of Slice I/O modules expands the capability of 2500 Series® Systems to include small drops of I/O connected over Ethernet.

Slice I/O modules communicate to 2500 Series® Processors using CAMP protocol and read/write directly to the PLC memory or I/O image table.

This allows transparent integration into the 2500 Series® system without the requirement for any complicated configuration step.  Ethernet connection to the CPU can be accomplished using the on-board port on 2500-Cxxx Processors, or using a 2572 / 2572-A Ethernet module.

Note that when using 2572 or 2572-A modules, Slice I/O can be connected even to legacy Siemens® and Texas Instruments PLCs.

Several models of Slice I/O are available with different mixes of I/O and with additional communications options including RS232/485 and 900MHz radio.

Slice I/O modules feature Universal Analog Inputs which allow connection of 0-5V, 0-20mA, thermocouple, and RTD sensors. All Slice I/O modules can also be configured to communicate over Ethernet using Modbus-TCP.

Features

I/O configuration of 8DIO / 2UAI

RJ45 Ethernet port

Connects to CTI and legacy Siemens® /TI CPUs over Ethernet

Several models with differing I/O capabilities allow you to customize the solution to your needs

Extensive intelligent features for processing attached I/O signals:

– Totalization, filtering, forcing, inversion, runtime, and counting on digital inputs

– Frequency out (with PWM) and synchronization on digital outputs

– Filtering, averaging, scaling and totalization on analog inputs

– Data logging and trending

All module configuration done using a simple web browser interface

Wide –40°C to +70°C operating temperature range

2500S-26-1050
