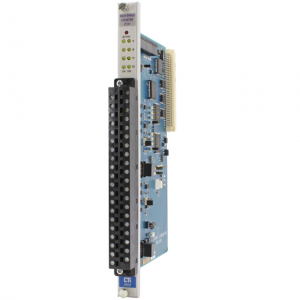

CTI 2502 2-Channel High Speed Counter Input Module

2502 2-Channel High Speed Counter Input Module

The 2502 module provides two high-speed 16-bit counter channels in a compact, single-wide module to fit in the 2500 Series® I/O base.

Features

Replaces Siemens® 505-7002 with no rewiring

Two independent high-speed 16-bit counter channels

Each counter has

pulse counter mode

1X, 2X, 4X quadrature counter modes

10 KHz count rate with minimum pulse width of 25us

two count inputs, two outputs

reset input and inhibit input

LED indicators

Description

The 2502 is a two-channel High Speed Counter Input

Module designed to count incoming pulses from

external sensors and provide process control outputs

based on count status.  It is compatible with the CTI

2500 Series®  and Simatic®  505 PLC systems and a

direct replacement for the Siemens® 505-7002 . The

2502 provides two independent counter channels.

2502

Features

• Replaces Siemens® 505-7002 with no rewiring

• Two independent high-speed 16-bit counter channels

Each counter has:

• pulse counter mode

• 1X, 2X, 4X quadrature counter modes

• 10 KHz count rate with minimum pulse width of 25µs

• two count inputs

• reset input

• inhibit input

• two outputs

• LED indicators

Specifications

Count Inputs:

Maximum Frequency

Duty  Count Mode  Quadrature Mode

Cycle  Frequency Frequency

10%  10 Khz  4 Khz

20%  25 Khz  8 Khz

25%  30 Khz  10 Khz

30%  35 Khz  12 Khz

40%  50 Khz  15 Khz

50%  45 Khz  15 Khz

60%  35 Khz  15 Khz

On voltage: 2.76 VDC

Current On:  8 to 16 mA

Off voltage:  0.8 VDC

Off voltage:  0 to 1 mA

Reset and Inhibit Inputs:

On voltage: 4 to 24 VDC

Current On:  2 to 40 mA

Off voltage:  -1.5 to 1.5  VDC

Off voltage:  0 to 0.75 mA

Outputs:

User voltage:   24 VDC max.

Voltage Drop:  1.8 VDC max. @ 400mA

1.0 VDC max. @ 25mA

Leakage Current:  500 µA max.

Max current:  500 mA

Connector: Removable

Wire Gauge: 14-22 AWG

Backplane Power: 3 Watts

Module Size: Single-wide

Shipping Weight: 1.5 lb (0.68 Kg)
