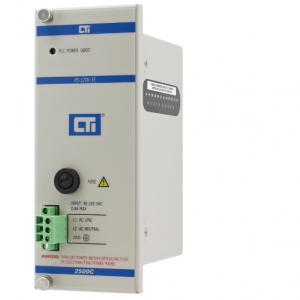

CTI 2500C-PS-120V-35 35-Watt AC Power Supply
2500C-PS-120V-35 35-Watt AC Power Supply
The 2500C-PS-120V-35 is designed for CTI’s 2500 Series® Compact I/O System. The module accepts input voltages of 120 or 240 VAC and provides 35 watts of power for the RBC and I/O modules.
nstalling Power Wiring
Note: This label is found on the side
of the power supply. It provides a
way for the user to record the date
the power supply was put in service.
Please visit our website for more
Warning:
Disable all power to the base before installing
or removing the power supply. Failure to do so
could cause damage to the equipment or injury
to personnel.
2500C-PS-120V-35
Caution:
Do not attempt to operate the 2500C-PS-120V
35 out of the Voltage Operating Ranges speci
fied. Damage to the Power Supply could occur
if out of range power input is applied.
User Supplied Power Input Wiring Diagram
Note: Use Copper Conductors Only.
Use the following steps for installing and removing the 2500C-PS-120V-35 Power Supply from the 2500C Chassis.
1. Position the power supply so that the bezel is facing you.
2. Grasp the top and bottom of the power supply
3. Carefully slide the power supply into the left most slot in the base until it engages into the backplane connector.
4. Strip power wiring back, insert the wire into the wiring connector as shown above, then tighten screws
5. Check to make sure the power input wires are securely inserted and the fastened in the wiring connector.
6. Insert and tighten down the 3 pin removable wiring connector.
7. Be sure to tighten the top and bottom bezel screws completely.
8. Once all the chassis modules including controllers and IO are inserted then you may apply power to the power supply
inputs.
To remove the power supply, remove power from the power input by removing the power wiring connector or turning off the
power source, loosen the bezel screws, and pull the power supply forward out of the chassis until it clears the chassis.
Features
Triple wide module, plugs into the power supply slot on 2500C-Rxx bases
85-240VAC, 47-63Hz input
Maximum 35 watts backplane power
100mSec holdup time
Model # Description Backplane Power Budget
2500C-C100 CPU, 128K 7 watts
2500C-C200 CPU, 256K 7 watts
2500C-C300 CPU, 512K 7 watts
2500C-C400 CPU, 3072K 7 watts
2500C-2572-B Fast Ethernet TCP/IP Adapter (100 Mbit) for Compact 2.5 watts
2500C-RBC-PRF Profibus Remote Base Controller 1.5 watts
2500C-RBC-RS485 RS485 Remote Base Controller 1.5 watts
2500C-16-DI-24V 16 Non-isolated 24 VAC/VDC Digital Inputs 1.2 watts (with all Inputs ON)
2500C-16-DI-120V 16 Non-isolated 120 VAC/VDC Digital Inputs 1.2 watts (with all Inputs ON)
2500C-16-IDI-120V 16 Isolated 120 VAC/VDC Digital Inputs 1.2 watts (with all Inputs ON)
2500C-16-IDI-24V 16 Isolated 24 VAC/VDC Digital Inputs 1.2 watts (with all Inputs ON)
2500C-8-IDO-120V 8 Isolated 120/240VAC Digital Outputs 1.09 watts (with all Outputs ON)
2500C-8-IDO-24V 8 Isolated 24VDC Digital Outputs 1.09 watts (with all Outputs ON)
2500C-16-DO-120V 16 120VAC Non-isolated Digital Outputs (Note Range
is 79-132VAC) 1.25 watts (with all Outputs ON)
2500C-16-DO-24V 16 24VDC Non-isolated Digital Outputs 1.25 watts (with all Outputs ON)
2500C-8-RL-FC 8 Form C Relay Outputs 1.22 watts
2500C-8-AI 8 Analog Inputs .706 watts
2500C-8-AO 8 Analog Outputs .312 watts
2500C-8-TC 8 Thermocouple Inputs 1.25 watts
2500C-8-RTD 8 RTD Inputs 1.125 watts
2500C-4-HSC 4 Channel High Speed Counter (Note: Release Date
Target 2016) TBD
