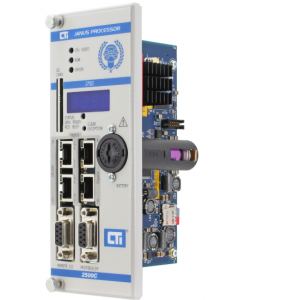

CTI 2500C-J750 Compact Janus PAC with 3MB Project Memory
2500C-J750 Compact Janus PAC with 3MB Project Memory
Features
Up to 10x execution speed compared to current 2500 Series CPUs
Programming is done using CTI’s Janus Workbench Software development package which includes all IEC-61131 languages (SFC, FBD, LD, ST and IL)
Built-in Remote I/O and Profibus interfaces with support for all existing 2500 Series discrete and analog modules
External SD card for user backup and file transfer while in RUN mode
Four Ethernet ports with internal switch that supports simultaneous connection to four different Ethernet networks
Embedded HMI function to easily create and view graphics screens for local operator interface directly from the PLC
Extensive built-in communications capabilities:
Optimized peer-to-peer communications with all CTI CPUs and the ACP1
CAMP server for HMI/SCADA access
CAMP client for communicating with CTI 2572/2572-x and Cxxx processors
Open Modbus client and server
EtherNet/IP Scanner/Adapter/Tag Client/Server
MQTT client for direct access to the IIoT
OPC-UA server (firmware V1.24 and above)
Profinet controller and device (future)
DESCRIPTION
The 2500 Series® Compact Controllers bring
exciting new features and a new level of
process performance to CTI’s 2500 Series®
Control Systems. The Compact Controller easily
handles small to large discrete and process
applications. Compact processors have the
same features and performance as our Classic
processors, and include PID loops, alarms and
special mathematical functions to make them
perfect for process applications.
The controllers are supported by a complete
range of digital, analog, and specialized I/O
modules, power supplies, and I/O bases, all
available from CTI.
2500C-J750
FEATURES
• Executes the same application programs
that were developed for the CTI 2500
Series® or Simatic® 545 / 555 CPUs
• Built-in Ethernet and USB ports for
programming
• Built-in micro-SD Flash card for firmware
update from flash
• Built-in Profibus and RS485 Remote I/O on
C200 and C300 models
• Up to 512K bytes memory, 8192 I/O points,
512 PID loops & 512 alarms, depending on
model
