CTI 2577 Profibus DP Slave Adapter

2577 Profibus DP Slave Adapter

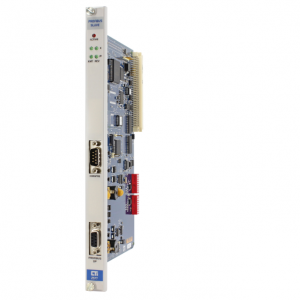

The 2577 allows a Profibus Master to read any PLC V, WX, X, and C memory location and write any V, WY, and C memory location over Profibus.

Features

No changes required to existing PLC configuration and I/O

Allows transfer of up to 110 words of data in and 110 words of data out to Profibus Master

Maintains statistics and diagnostic information for the Profibus network

Auto-senses Profibus baud rate

Integrates CTI 2500 Series® and Simatic® 505 systems into S7 and PCS7 designs

Processors

2500-C100 – CPU w/128K user memory

2500-C200 – CPU w/256K user memory

2500-C300 – CPU w/512K user memory

2500-C400 – CPU w/3072K user memory

Up to 512 loops; 512 alarms;

8192 digital/analog I/O; Built-in:

Ethernet; USB; SD card slot;

Profibus-DP master and RS485

I/O ports

Coprocessors

2500P-ACP1 – Application Coprocessor

2500P-ECC1 – Ethernet Communications

Coprocessor

High-performance modules offer

low-cost, high-performance

solutions for computing and

communications applications,

incl. HMI migrations, RLL to

other programming languages

data exchanges , etc.

Bases

2577

2500P-R4 – Four-slot base

2500P-R8 – Eight-slot base

2500-R11-A – Eleven-slot redundant base

2500P-R16 – Sixteen-slot base

2500-SSB – Single-slot blank front panel

Space for power supply, CPU/

RBC, slots for up to 16 I/O

modules. R11 allows for 2 PS

and 2 RBCs in redundant

configuration. 2500P bases have

hi-speed channel.

Remote Base

Controllers & Wiring

2500-RBC – Profibus RBC

2500-RIO-B – RS485 RBC

2500-RFC – CPU to RF Modem Cable

2500-TAP – RS485 Network Tap

Allows control of CTI 2500 Series

or Simatic 505 I/O bases on

either Profibus-DP I/O channel or

over RS485 cable

Power Supplies

2512 – 75-watt AC Power Supply

2512-A – 75W AC PS w/redundancy support

2513 – 24VDC Power Supply

2515-A – 100W AC PS w/redundancy support

75-watt to 100-watt power

supplies for AC and DC input

power
