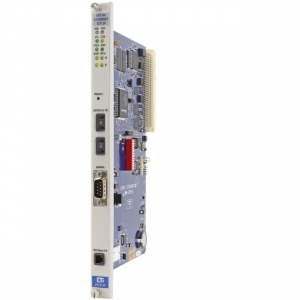

2572-AF Fast Ethernet TCP/IP Adapter with Optical Fiber Connection
The 2572-AF Ethernet TCP/IP Adapter with Optical Fiber Connection is the next generation 2572 network interface module for 2500 Series® controllers.
The 2572-A provides connectivity to Ethernet networks using IEEE 802.3. Ethernet II and Transmission Control/Internet Protocol standards, at 10M or 100M speeds.
IMPORTANT NOTE: 2572-AF HAS BEEN MATURED. IT IS REPLACED BY 2572-B or 2500P-ECC1. WHICH SHOULD BE USED ON
Features
Compatible with Siemens® 505-CP2572 and CTI 2572
Direct Fiber MTRJ connection
TCP/IP support includes UDP and TCP
Remote programming over Ethernet
MMI/HMI connectivity
DDE and OPC support available
DHCP configuration option
Built-in web server for diagnostics
