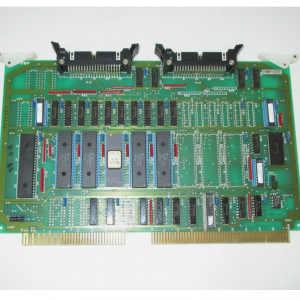

Shinkawa FRP-177 PCB Module

Shinkawa FRP-177 PCB Module

The Shinkawa FRP-177 is a high-reliability industrial printed circuit board (PCB) module designed by Shinkawa Electric Co., Ltd. (Japan). It is engineered for critical signal processing, system interface management, and operational control within automated industrial machinery, turbomachinery protection systems, and Shinkawa semiconductor wire-bonding equipment.

Product Introduction / Overview

The Shinkawa FRP-177 PCB Module serves as a core processing card within modular industrial control racks and condition monitoring frameworks. It conditions, filters, and processes complex analog or digital control signals to ensure stable communication between field sensors and central control units.

Engineered for continuous $24/7$ industrial operation, the FRP-177 module offers high signal fidelity, resistance to electrical noise, and long-term hardware reliability in harsh manufacturing environments.

Manufacturer: Shinkawa Electric Co., Ltd. (Made in Japan)

Series: FRP Industrial Control & Processing Series

Module Code: FRP-177

Product Type: Printed Circuit Board (PCB) / Control Module

Primary Applications: Industrial Automation, Turbomachinery Monitoring, Semiconductor Equipment Control

Technical Parameter List

Product Features / Core Advantages

High-Precision Signal Processing: Minimizes signal distortion and processing latency in high-speed control loops.

Industrial Noise Immunity: Shielded circuit layers and onboard filtering protect against intense electromagnetic interference (EMI) found on factory floors.

Modular Slide-In Design: Standardized card form factor allows rapid insertion and replacement, significantly reducing maintenance downtime.

Japanese Precision Construction: Built with high-grade components designed to maintain structural and electrical integrity over extended operation.

Seamless Rack Integration: Directly interfaces with Shinkawa control chassis backplanes and monitoring frames.

FRP-177

Model Classification

The FRP-177 fits into Shinkawa’s industrial PCB and controller taxonomy:

FRP-177 Base Model: Core processing circuit card assembly.

Revision / Sub-part Designations: Specific hardware revisions or trace layouts may feature sub-part numbers (e.g., P-series revisions) tailored to specific backplane wiring configurations or system generation releases.

Environmental Tolerance Conditions

To ensure optimal operational stability and prevent premature component failure, the FRP-177 PCB must operate within the following environmental limits:

Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 5% to 95% RH (Non-condensing)

Vibration Resistance: 10 Hz to 55 Hz, 0.15 mm amplitude (per IEC 60068-2-6)

Shock Resistance: 15g peak acceleration, 11 ms duration

Operating Environment: Free of corrosive gases, conductive dust, active organic solvents, and high electromagnetic fields.

Installation Method

1.System Power Disconnection：Safety Isolation。

Power down the target control chassis or machinery rack. Disconnect main power lines to avoid electrical shock or hardware short-circuiting during installation.

2.ESD Grounding Setup：Pre-Handling。

Equip an anti-static (ESD) grounding wrist strap connected to a verified ground point prior to removing the FRP-177 board from its protective packaging.

3.Module Alignment & Sliding：Mechanical Insertion。

Align the edges of the FRP-177 board with the guide rails inside the card slot. Slide the board smoothly into the slot until the rear multi-pin connector seats firmly into the backplane socket.

4.Securing & System Verification：Fastening & Power-Up。

Tighten front-panel retaining screws or lock side latches to secure the module and complete chassis ground shielding. Reapply power and verify normal initialization via status indicators.

Operating Instructions

Pre-Power Check: Ensure the card is fully seated in the rack slot and retaining hardware is tight before energizing the system.

Startup Monitoring: Observe front panel status LEDs or main controller diagnostic screens during power-up to confirm proper POST (Power-On Self Test) completion.

Signal Integrity Monitoring: Periodically verify channel readings through system software to confirm normal signal transmission through the module.

Routine Inspection: Inspect card edge contacts and slot ventilation paths for dust accumulation during regularly scheduled facility maintenance.
