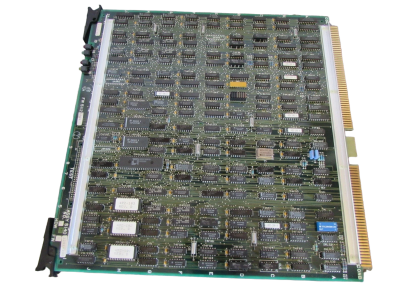

HONEYWELL  51400596-100

HONEYWELL  51400596-100

MONITOR OPERATION

The Enhanced Micro TDC3000 may be using one of following types of monitors:

• IDEK 21–inch Multiscan Color Monitor (older monitor Model MF-5221).  Section

5.4.1 explains the analog, rotary-type screen control knobs.

• IDEK 21–inch Vision Master Monitor (newer monitor Model MF-8221).  Section

5.4.2 explains the digital, push-button screen controls.

• HITACHI 21–inch Color Monitor (Model HM-4821-D).  Section 5.4.3 explains

the screen controls.  This monitor meets CE requirements.  It must be ordered

separately using model number MX-MTMA21.

The newer IDEK monitor is essentially identical to the older monitor including the

touchscreen option.  There are small physical differences between them primarily in the

layout and location of the screen controls.  The new monitor has its screen controls

mounted inside a recessed, sliding tray (drawer) located below the screen.  The screen

controls on the new monitor cannot be accessed once the drawer is closed (pushed in).  The

overall dimensions of the newer monitor are slightly larger than the older monitor.

Electrically, the video cable plug and pinning are identical in both.

Both IDEK monitors have an optional touchscreen (infrared touchscreen frame with plastic

bezel assembly) which are physically different.  The touchscreen option for the newer

monitor has 4 mounting ‘buttonholes’ (two on each side), and is only compatible with the

newer monitor.  The older monitor has 2 ‘buttonholes’ (one on each side).  The

touchscreen controller (electronics) and cable for the new monitor is identical to the older

monitor and can be easily transferred.

Table 5-1 shows the touchscreen hardware used with each monitor.  The only difference

between the two IDEK monitors is the larger Bezel for the newer IDEK Model 8821.  The

Hitachi uses the same touchscreen frame as the IDEK monitors.

POWER SWITCH (ON/OFF)-

Use to turn the power ON or OFF.-

Press the switch to turn ON and press it again to turn OFF.

POWER/STANDBY INDICATOR-

Indicates power-ON/OFF or stand-by state.-

When the power is ON, green light comes on, and it goes off when the power

is OFF.  When the AUTO POWER-OFF SENSOR is activated and switches to

the stand-by state, the green light turns red.

AUTO POWER-OFF SENSOR-

51400596-100

To save energy, it detects the presence of an operator and powers down to the

standby state automatically when no one is in front of the monitor for over an

hour.-

To turn the power back on in the standby state, the following two ways are

available:

One is to press the AUTO POWER-OFF setup swtich.

The other is to press the POWER SWITCH and make sure the red light goes

off.  Then press it again and green light will come on.

Note:- Do not place anything in front of the sensor.  It doesn’t operate properly

when it is dirty or covered.

AUTO CONTRAST SENSOR-

To avoid eye strain and reduce energy, it adjusts the screen contrast

automatically as the ambient light of the room changes.

Note:- Do not place anything in front of the sensor.  It doesn’t operate properly

when it is dirty or covered.
