ADLINK 6U Enclosures & Systems cPCIS-6400U Series

6U Enclosures & Systems

cPCIS-6400U Series

4U 5-slot CompactPCI® Chassis with Redundant Power Supplies

Key Features

Standard 6U CompactPCI® and PICMG® 2.5 H.110 CT Bus

PICMG® 2.1 Hot Swap compliant 32-bit or 64-bit 5-slot CompactPCI® backplane with P3 & P5 rear I/O

PICMG® 2.11 Standard CompactPCI® 47-Pin Power Interface

2 + 1 hot swappable 500 W + 250 W redundant power supplies with universal AC input

Built-in slim type optical drive

Dual removable SATA HDD racks

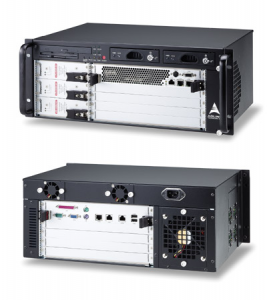

cPCIS-6400U

Guarded power switch and reset button

Redundant cooling architecture

The cPCIS-6400U/6400X Series subsystems are designed for 6U cPCI boards with 80mm RTMs. The chassis is 4U in height and standard 19″ rack mount width.

The cPCIS-6400U provides 2+1 hot swappable 500W+250W redundant power supplies with universal AC input, while the cPCIS-6400X has a built-in 400W AC-input ATX power supply with cooling fan. Both series have PICMG 2.1 Hot Swap compliant 32/64-bit 5-slot CompactPCI backplanes and a PICMG 2.5 H.110 CT Bus.

Ordering Information

cPCIS-6400USS/SDVD4U 64-bit/66MHz CompactPCI® Subsystem with AC input AT PSU (3x 250W), 1x SATA DVD, 2x SAS HDD Racks & Basic Alarm Board

cPCIS-6400UA/AC/SDVD4U 64-bit/66MHz CompactPCI® Subsystem with AC input AT PSU (3x 250W), 1x SATA DVD, 2x SATA HDD Racks & Basic Alarm Board

cPCIS-6400UA/AC/SDVD/WM4U 64-bit/66MHz CompactPCI® Subsystem with AC input AT PSU (3x 250W), 1x SATA DVD, 2x SATA HDD Racks & Buzzer, WebUI, SNMPV2
