ADLINK 6U CompactPCI 2.0 Blades cPCI-6660

6U CompactPCI 2.0 Blades

cPCI-6660

6U CompactPCI Intel® Atom® x6413E Processor Blade

Key Features

Quad core Intel Atom® x6413E Processor

Dual Channel DDR4-2400-3200MT/s with IBECC

5V power input only

Four 2.5GbE Ethernet ports, 3x RJ-45 and 1x M12 X-coded

Onboard iSLC, optional 2.5″ SATA space or mSATA by BOM option

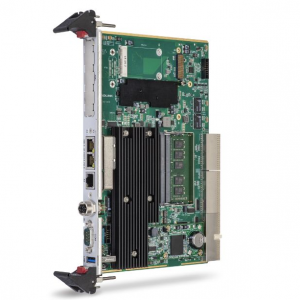

The cPCI-6660 Series is a 6U CompactPCI single-board computer available in single-slot (4HP) or dual-slot (8HP) width form factors, powered by the Quad-core Intel Atom® x6413E Processor.

The cPCI-6660 now supports dual-channel DDR4-2400-3200MT/s memory with In-Band ECC (IBECC) for enhanced reliability.

It features a 5V power input, four 2.5GbE Ethernet ports (3x RJ-45 and 1x M12 X-coded), onboard iSLC, and offers flexible storage options, including an optional 2.5″ SATA drive space or mSATA, configurable by BOM.

cPCI-6660
