ADLINK cPCI-8994 Serial Communication

ADLINK cPCI-8994

Serial Communication

cPCI-8994

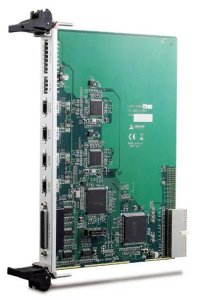

6U CompactPCI 4-port IEEE-1394a & 4-port RS-232 Card

Key Features

32-bit/ 33MHz 6U CompactPCI, PICMG 2.0 Rev 3.0

Plug-and play, IRQ&IO address automatically assigned by BIOS

4 IEEE 1394a ports

Power Provided to IEEE 1394 I/O Connection: 1A/per port

4 RS-232 ports, baud rates up to 15Mbps in asynchronous mode

One 12V power output connector on the front panel

Features

■ 32-bit/33 MHz 6U CompactPCI, PICMG 2.0 Rev 3.0

■ Plug-and play, IRQ & IO address automatically assigned

by BIOS

■ Four IEEE 1394a ports

■ Power Provided to IEEE 1394 I/O Connection: 1A/port

■ Four RS-232 ports, baud rates up to 15 Mbps in

asynchronous mode

Applications

■ Factory automation

■Machine automation

■Distributed monitoring & control systems

■ Telecommunication and industrial control

Software Support

cPCI-8994

■Windows® 2000/XP/7

■ Linux drivers

■ RTX 5.0 or later

Specifications

■ IEEE 1394

■RS-232

■Baud rate

■Dimensions

■PCI Interface

■OS Support

■ I/O

■Power Provided to IEEE 1394 Connection

■Operating Temperature

■Storage Temperature

TI TSB43AB23. IEEE 1394a OHCI PHY/Link controller

TI TSB41AB3. IEEE 1394a 3port transceiver/arbiter

OX16PCI954. quad COM ports controller

Up to 15 Mbps in asynchronous mode

255 mm x 165 mm

+5 V or +3.3 V 32-bit PCI signaling environment

32-bit Compact PCI, PICMG 2.0 Rev 3.0

Windows 2000. XP Embedded, RTX 5.0 or later

4 ports IEEE 1394a, 4 ports RS-232. and one 12 V power

output connector on the front panel

1 A / per port (over-current protection)

0˚C to +55˚C-20˚C to +80˚C

■Humidity

5% to 95% non-condensed
