SEL SEL-T4287 Traveling-Wave Test System
SEL-T4287
Traveling-Wave Test System

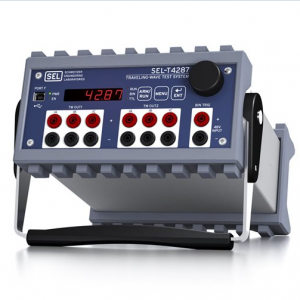

The SEL-T4287 is a simple-to-use, compact, and economical secondary pulse injection test set for testing traveling-wave fault locators and line protective relays.
Traveling-wave fault locators and protection elements and schemes measure sharp changes in their input currents and voltages with rise times as fast as 1 microsecond.
The fault locators and relays respond to relative polarities and relative timing of these sharp signal changes.
The SEL-T4287 generates output current signals with the short rise time, adequately slow decay, and nanosecond precision necessary for testing standalone traveling-wave fault locators, traveling-wave protective relays, and traveling-wave fault locators embedded in line protective relays.
Testing single-ended, double-ended, and multi-ended traveling-wave fault locators based on either currents or voltages.
Testing traveling-wave directional protection elements.
Testing traveling-wave current differential schemes.
Versatile Applications
SEL-T4287
The SEL-T4287 generates two 3-phase sets of secondary traveling-wave currents. An optional voltage module accessory (low-inductance resistors) allows you to convert one or both current output sets into traveling-wave voltage signals.
Test current- or voltage-based fault locators or protection elements and schemes, including: single- and multi-ended fault locators, traveling-wave directional elements, and traveling-wave differential schemes.
Time-synchronize or cross-trigger multiple SEL-T4287 sets to generate more than two three-phase traveling-wave signals with timing patterns as needed by the device under test.
Simple Test Parameter Configuration
Specify line and fault parameters, and let the SEL-T4287 calculate and apply the traveling-wave test signals.
A simple and intuitive SEL-T4287 human-machine interface (HMI) allows you to specify test parameters and offers full control of tests without the need for a PC and software.
End-to-End Testing
Perform end-to-end testing of traveling-wave protection schemes and multi-ended fault locators with multiple SEL-T4287 test sets synchronized to satellite clocks via a standard IRIG-B input.
Preconfigure each test set, schedule a test time, and let the multiple SEL-T4287 devices apply the right test signals at all terminals of the line. Test multi-ended traveling-wave fault locators for lines with more than two terminals.
End-to-end testing is a standard feature included in the base price and can be used with any IEEE C37.118-compliant satellite clock with IRIG-B output.
