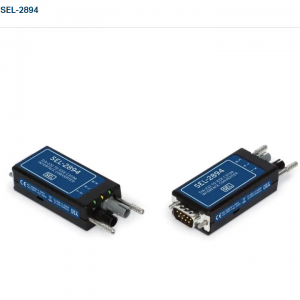

SEL SEL-2894 Interface Converter

SEL-2894

Interface Converter

Transfer SEL Mirrored Bits communications via an IEEE C37.94 fiber-optic link through a communications multiplexer.

Or, convert other EIA-232 serial links to IEEE C37.94 optical fiber links for improved safety, signal integrity, and longer distances.

EIA-232 to Fiber-Optic Interface

Interface asynchronous EIA-232 devices with synchronous networks through IEEE C37.94 compliant multiplexers or transfer switches.

The IEEE C37.94 standard provides plug-and-play transparent communications between different manufacturers’ teleprotection and multiplexer devices. The SEL-2894 uses 850 nm wavelength optics.

SEL-2894

SEL Mirrored Bits Communications

Connect the SEL-2894 to any relay with Mirrored Bits communications, and transport at data rates from 300 to 19200 bps with less than 375 µs delay, back-to-back.

Safety and Security

Install fiber-optic connections to isolate communications from ground potential rise and electrical interference.

High-Speed Communications

The SEL-2894 has very low latency adding only 375 µs of through delay back-to-back. It works with EIA-232 signals from 300 bps to 19.200 bps.Three LED Indicators

TX and RX green LEDs show incoming and outgoing fiber-optic states. A standard yellow alarm LED indicates a transmission problem.Selectable Time Reference

A side-selector switch on the SEL-2894 configures the internal clock for either external or internal time reference.

Flexible Power Supply

The converter connects directly to a standard 9-pin serial port and receives power directly on Pin 1 so no external power is required when used with SEL relays.

The converter can also receive power from an external supply when connected to other devices.
