ADLINK USB DAQ USB-2405

USB DAQ

USB-2405

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module (OEM version available)

Key Features

Hi-Speed USB 2.0. and USB bus powered

24-bit Sigma-Delta ADC with built-in anti-aliasing filter

4-CH simultaneous sampling analog input, up to 128kS/s

AC or DC input coupling, software selectable

Analog and Digital triggering & Full auto-calibration

USB-2405

Supports 2mA excitation output on each analog input channel for IEPE sensor measurement

Supporting Time-Frequency analysis software -Visual Signal

Supported Operating System: Windows 7/8 x64/x86. Linux, and MAC (Call for availability)

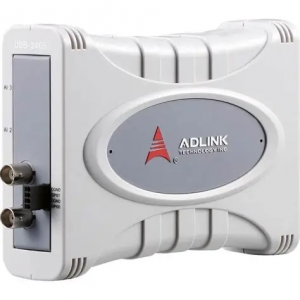

he USB-2405 is a 24-bit high-performance dynamic signal acquisition USB module equipped with 4 analog input channels providing simultaneous-sampling at up to 128 kS/s per channel.

The USB-2405 also features software selectable AC or DC coupling input configuration and built-in high precision 2 mA excitation current to measure integrated electronic piezoelectric (IEPE) sensors such as accelerometers and microphones.

The USB-2405 delivers high precision, DC and dynamic measurement performance with very low temperature drift.

The onboard 24-bit Sigma-Delta ADC supports anti-aliasing filtering, suppressing modulator and signal out-of-band noise and providing usable signal bandwidth of the Nyquist rate, making it ideal for high dynamic range signal measurement in vibration and acoustic applications.

The USB-2405 supports digital and analog trigger sources and flexible trigger modes, including post, delay, middle, gated, and pre-triggering for efficient data acquisition with no need for post-processing.

The USB-2405 is USB bus powered and equipped with BNC connectors and removable spring terminals for easy device connectivity.

OS Information

-Windows 7/8 x64/x86. Linux, and Mac

Software Compatibility

-LabVIEW?

-MATLABR

-C/C++

-Visual Basic, Visual Studio.NET

Software Recommendations

-U-Test

-Visual Signal DAQ Express
