ADLINK PICMG Single Board Computers NuPRO-E315
PICMG Single Board Computers

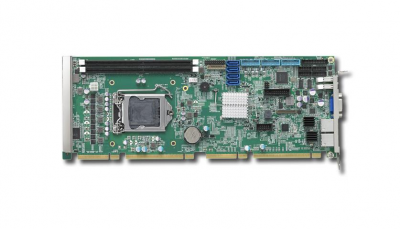

NuPRO-E315
PICMG® 1.3 Full-Size LGA775 Intel® Core™2 Quad/Duo Processor-based SHB
Key Features
Intel® G41+ ICH7R chipset supports up to 1333 MHz FSB LGA775 Intel Core™2 Quad/Duo Processor
Dual-channel DDR3 800/1066MHz, up to 4GB
Intel® Matrix Storage Technology, supports RAID 0/1/5/10
6x COM ports (including 1x RS-232/422/485/485+)
The ADLINK NuPRO-E315 is a PICMG 1.3 System Host Board (SHB) supporting the next-generation Intel® Core?2 Quad/Duo, Pentium® Dual-Core and Celeron® processors in the LGA775 package to deliver a high performance platform for a wide array of industrial automation applications.
The NuPRO-E315 supports 45nm process CPUs at up to 3.00GHz and 1333 MHz Front Side Bus (FSB).
Dual channel DDR3 800/1066 MHz memory is supported up to a maximum of 4GB in two DIMM slots.
These advanced features, coupled with PCI Express® x16 expansion capability, PCI Express®-based Gigabit Ethernet and diverse I/O and storage make the NuPRO-E315 ideal for instrumentation and automation control applications.
NuPRO-E315
Specifications
Processor & System
CPU Intel® Core™2 Quad Q9400. 2.66 GHz, 1333 MHz FSB, 6M
Cache, 45nm, 95W TDP, LGA775
Intel® Core™2 Quad E8400. 3.00 GHz, 1333 MHz FSB,
6M Cache, 45nm, 65W TDP, LGA775
Intel® Core™2 Duo E7400. 2.8 GHz, 1066 MHz FSB,
3 MB L2 Cache, 45nm, 65W TDP, LGA775
Intel® Pentium® Dual Core E6500. 2.93 GHz, 1066 MHz FSB,
2 MB L2 Cache, 45nm, 65W TDP, LGA775
Intel® Core™2 Duo E6400. 2.13 GHz, 1066 MHz FSB,
2 MB L2 Cache, 65nm, 65W TDP, LGA775
Intel® Pentium® Dual Core E5300. 2.6 GHz, 800 MHz FSB,
2 MB L2 Cache, 45nm, 65W TDP, LGA775
Intel® Core™2 Duo E4300. 1.8 GHz, 800 MHz FSB,
2 MB L2 Cache, 65nm, 65W TDP, LGA775
Intel® Celeron® Dual Core E3400. 2.6 GHz, 800 MHz FSB,
1 MB L2 Cache, 45nm, 65W TDP, LGA775
Intel® Pentium® Dual Core E2160. 1.8 GHz, 800 MHz FSB,
1 MB L2 Cache, 65nm, 65W TDP, LGA775
Intel® Celeron® Dual Core E1500. 2.2 GHz, 800 MHz FSB,
512 KB L2 Cache, 65nm, 65W TDP, LGA775
Intel® Celeron® 440. 2.0 GHz, 800 MHz FSB,
512 KB L2 Cache, 65nm, 35W TDP, LGA775
Chipset Intel® G41 + ICH7R
Memory 2x 240-pin DIMM sockets
Dual-channel DDR3 800/1066 MHz, up to 4 GB
BIOS AMIBIOS 32 Mb SPI BIOS
Watchdog Timer 1-255 sec or 1-255 min software programmable, can
generate system reset
Hardware Monitor CPU/System temperature, fan speed and onboard DC
voltages
Operation Systems Windows® XP, 7 32/64-bit
Fedora™ 12. Red Hat Enterprise Linux 5
I/O Interfaces
Serial ATA 4x SATA 3 Gb/s ports (supports RAID 0/1/5/10)
USB 8x USB 2.0 ports (4x onboard pin headers and 4x backplane)
KB/MS 1x PS/2 keyboard/mouse
Parallel Port 1x LPT
Serial Port 5x RS-232. 1x RS-232/422/485/485+
