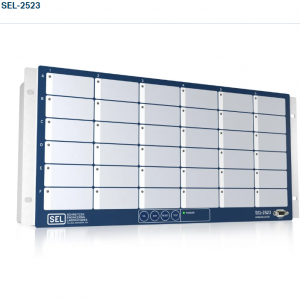

SEL SEL-2523 Annunciator Panel

SEL-2523

Annunciator Panel

Monitor demanding applications with the SEL-2523 Annunciator Panel—an alarm panel providing 42 inputs, 11 outputs, and up to four communications ports supporting DNP3. Modbus, and SEL protocols.

Simplify commissioning and troubleshooting with a built-in sequence of events (SoE) recorder and full software human-machine interface (HMI).

The alarm panel’s field-configurable labels enable quick modification if the number or type of monitored devices changes.

A wide range of power supply voltages and contact input voltages allow the SEL-2523 to be installed in virtually any system.

Local Annunciation

Select from six ISA-18.1 standard acknowledge sequences.

Communications

Use up to four serial ports to communicate using DNP3. Modbus, or SEL protocols, including Mirrored Bits communications.

Time-Tagged Event Recording

Time-tag alarm events to the nearest millisecond. Report time-tagged messages with DNP3 or the SEL Fast SER protocol.

Easy Installation

Save time with simple wiring and configuration. Print slide-in labels on any printer for easy installation or modification.

Logic Processing

Create custom alarm conditions using programmable logic to combine inputs and communications data without custom wiring.

Reliability

Meet the demands of your harshest environments. The SEL-2523 is designed to exceed stringent vibration, electrostatic discharge, electromagnetic interference, and temperature requirements.

Alarm Identification

Apply configurable labels to uniquely identify each alarm point LED. Preprinted labels (with factory default text) and blank labels are shipped with the SEL-2523. Download a template and instructions for printing on blank labels.

Custom Configuration

Create as few or as many points as needed for each application by using programmable logic. Implement multiple alarm panels for high-density alarm applications. Indicate the status of up to 36 alarm points.

Digital I/O Sequential Events Recorder (SER)

Assign different element names to each defined SER point for the asserted and deasserted states. Provide a clear view of an event to operators and viewers.

Monitoring and Control

Test and commission annunciator panels with live device status information on an acSELerator QuickSet SEL-5030 Software HMI screen. Operate and monitor the device remotely from a virtual front panel.

SEL-2523
