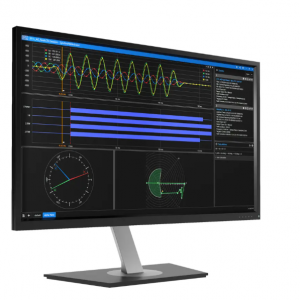

Synchrowave Event helps engineers diagnose a protective relay’s behavior during a power system fault.

It is a powerful yet easy-to-use solution for displaying and analyzing SEL relay event reports and COMTRADE files.

Analyze Relay Event Data

Plot relay oscillography, display phasor magnitudes and angles, and monitor the status of digital elements. Navigate through events with integrated zoom and pan functions.

Time-Align Event Reports

Easily coordinate multiple event report times for accurate comparison and analysis of signals from multiple relays or past event reports.

Perform Calculations

Create equations to analyze specific trip conditions. Instantly plot calculation results for quick event analysis.

The built-in function library creates endless calculation possibilities.

COMTRADE Viewer

View COMTRADE reports from a variety of sources together in Synchrowave Event for complete COMTRADE file analysis.

Visualize Distance Elements

Analyze protective relay distance element operation with the exact mho circle diagram.

The mho circle diagram enables plotting apparent impedance and distance element characteristics for analysis.

Save Analysis Setup Time

Create personal and relay specific analysis templates to provide a customized view into the relay’s operation. Save and share templates for more efficient post-event analysis.

Understand Differential Element Performance

View the current differential ratios plotted directly onto the complex alpha plane.

Supporting both two- and multi-terminal lines, you can overlay the differential ratio with the restraint region to quickly identify when the differential element picked up. Experiment with alternative restraint regions to explore the effects of alternate protection settings.

SEL-5601-2

Supported Operating Systems

Microsoft Windows 10 (64-bit)

Microsoft Windows 11 (64-bit)

Additional Features

Frequency spectrum analysis

Harmonic analysis

Export data to COMTRADE and .CSV

View relay settings

Print screen captures

Complex chart

Event File Support

COMTRADE (including those used for viewing and analyzing traveling waves)

SEL Compressed ASCII (.CEV) event report

SEL ASCII (.EVE) event report

Motor Start Reports (.MSR, .CMSR)

Sequential Events Recorder (.SER, .CSER)

Comma-Separated Values (.CSV)

Meter LDP and SER data (.bin)

Voltage Sag, Swell, and Interruption Report (.txt)

SEL-T400L and SEL-T401L Event Playback (.PLY) file

SEL Zipped Event (.EVZIP)
