Distributed Motion Control

PCI-7856

Master-Slave Distributed Motion & I/O Master Controller

Key Features

Non-volatility RAM onboard

Software selectable transmission speed: 2.5 / 5 / 10 / 20 Mbps for Motionnet

Software selectable transmission speed: 3 / 6 / 12 Mbps for HSL

RJ-45 jack for easy installation

Programmable timer interrupt

Connect motion axis up to 256 axes

Connect I/O points up to 2.016 points

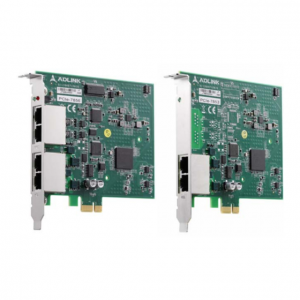

PCI-7856

The PCI-7856 is a PCI interface card which offers two ports for Motionnet and HSL systems for distributed motion and I/O in machine automation applications.

HSL technology allows thousands of I/O points to be scanned at the millisecond-level in real time by using mater-slave architecture. Commercial Ethernet cables with RJ45 connector are used for simplified setup of the HSL slaves modules as close as possible to sensor devices which results in a dramatic reduction of wiring. System integrators can benefit from HSL network because it integrates discrete I/O and analog I/O modules. This local network features rapid response, real-time scanning.

A Motionnet system (referred to as “MNET”) is a distributed motion solution for machine systems. MNET is an innovative distributed motion technology which provides distributed motion axis control of up to 256 axes for any servo / stepper motor controlled using mater-slave architecture. This not only provides general purpose 4-axes motion control, but also allows specific 64 of single axis motion control module to be scanned in millisecond-level in real time.

Motionnet and HSL features:

*Flexible, comprehensive, extendable distributed motion and I/O solution based on PC architecture or embedded platform

*Convenient wiring for remote distributed motion & I/O modules, including multiple-axes motion control module, single axis motion control module, discrete I/Os and analog I/Os

*Space saving, reduced wiring and easier maintenance for cost saving

*Time-deterministic, fast scanning with hundreds of discrete I/O points (up to 2.016 points)

*Real-time and fast scanning to realize high-speed and highresponse motion control up to 256 axes support.

Ordering Information

PCI-7856Master-slave distributed motion & I/O master controller

Recommend List

MNET-J3 / MNET-S23 / MNET-MIADistributed Single-axis Motion Control Modules

MNET-DA2 / MNET-SANDistributed Single-axis Motion Control Modules for Delta and Sanyo

MNET-4XMOMotionnet Distributed 4-axis Motion Control Module
